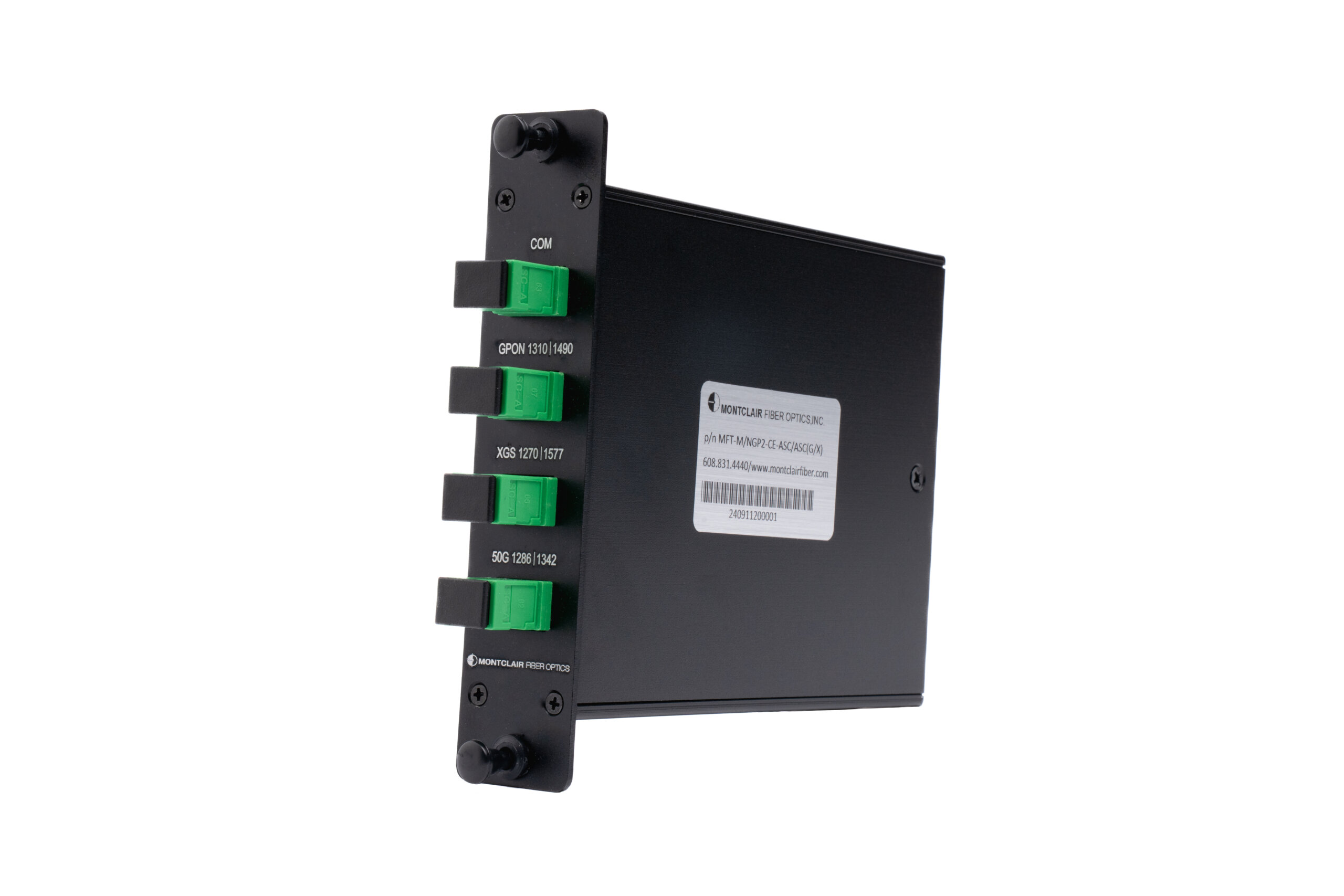

CEx GPON XGS-PON 50G Monitor LGX
Coexistence CEx - Image 2
Coexistence CEx - Image 3

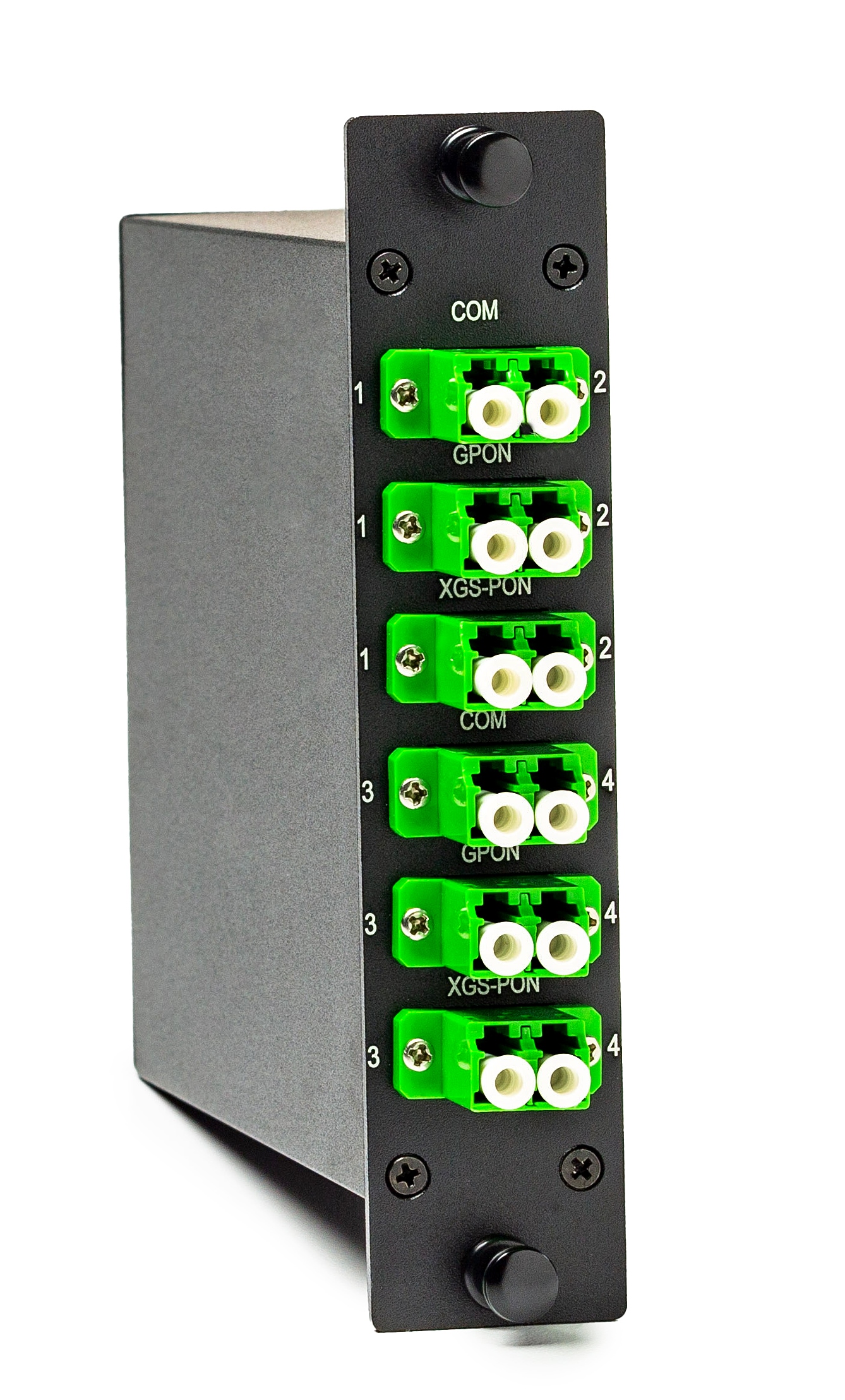

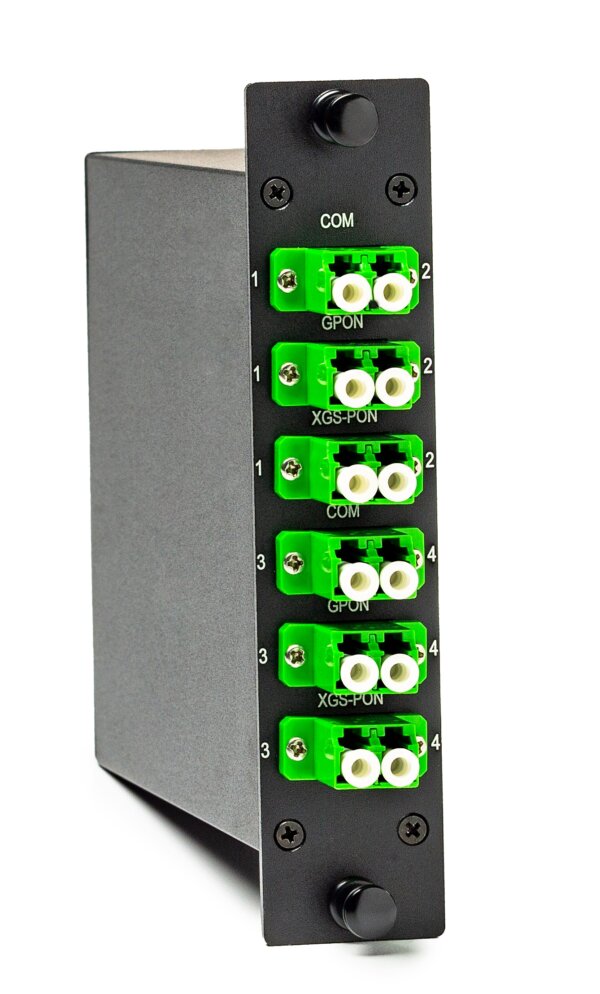

4x CEx GPON XGS LGX

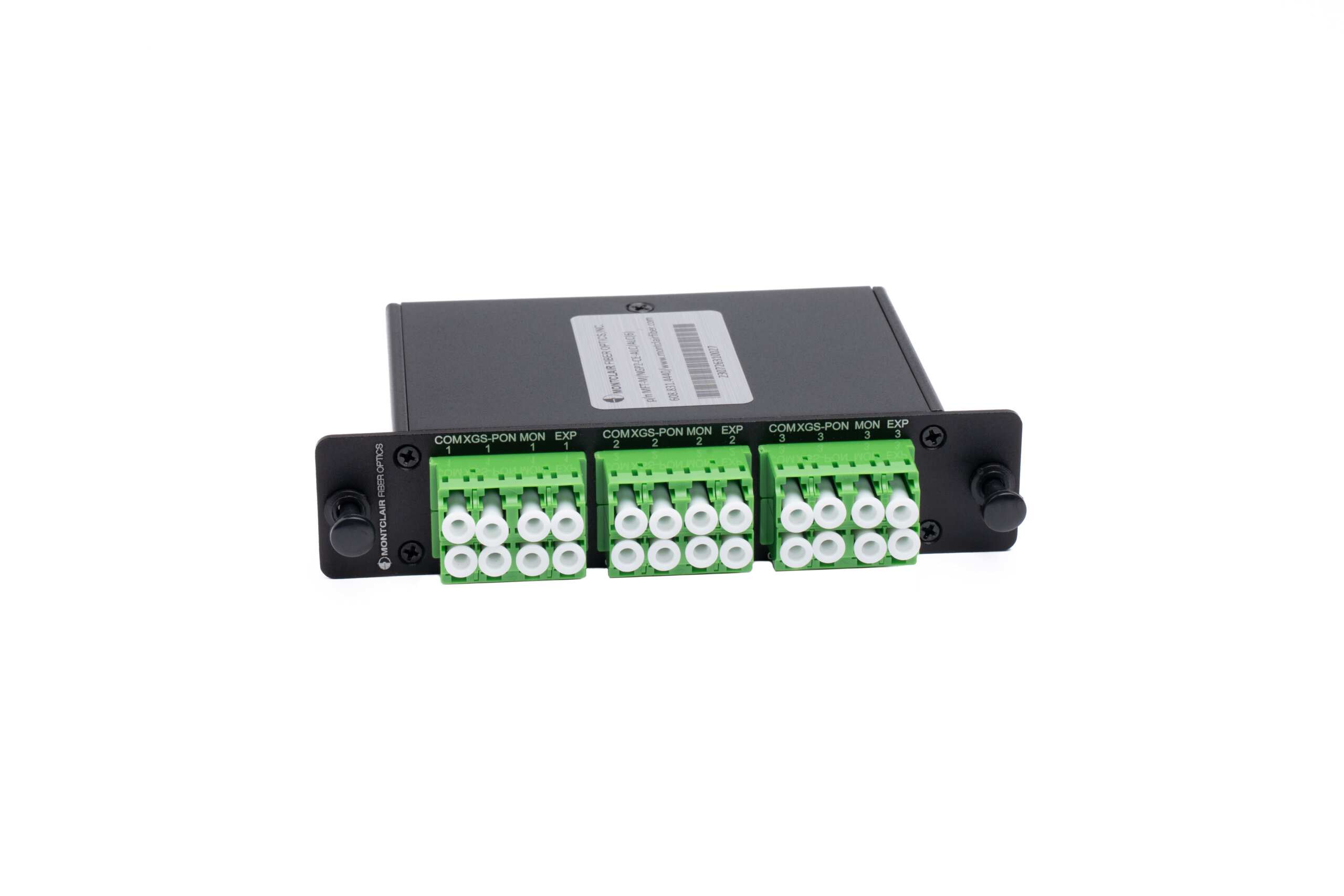

6x CEx GPON XGS Express LGX
CEx Ruggedized Cassette

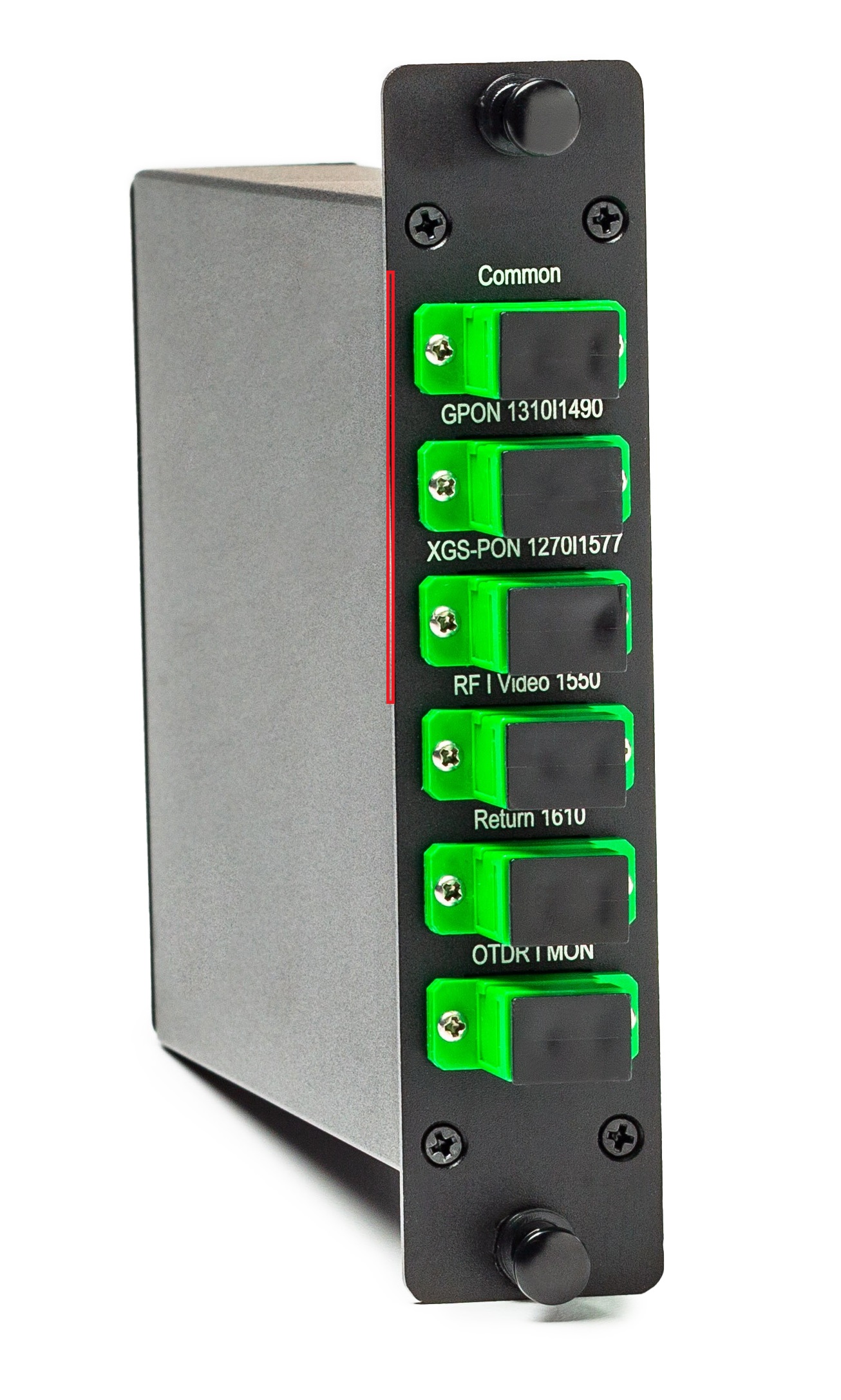

CEx GPON XGS 1610 Return RF LGX

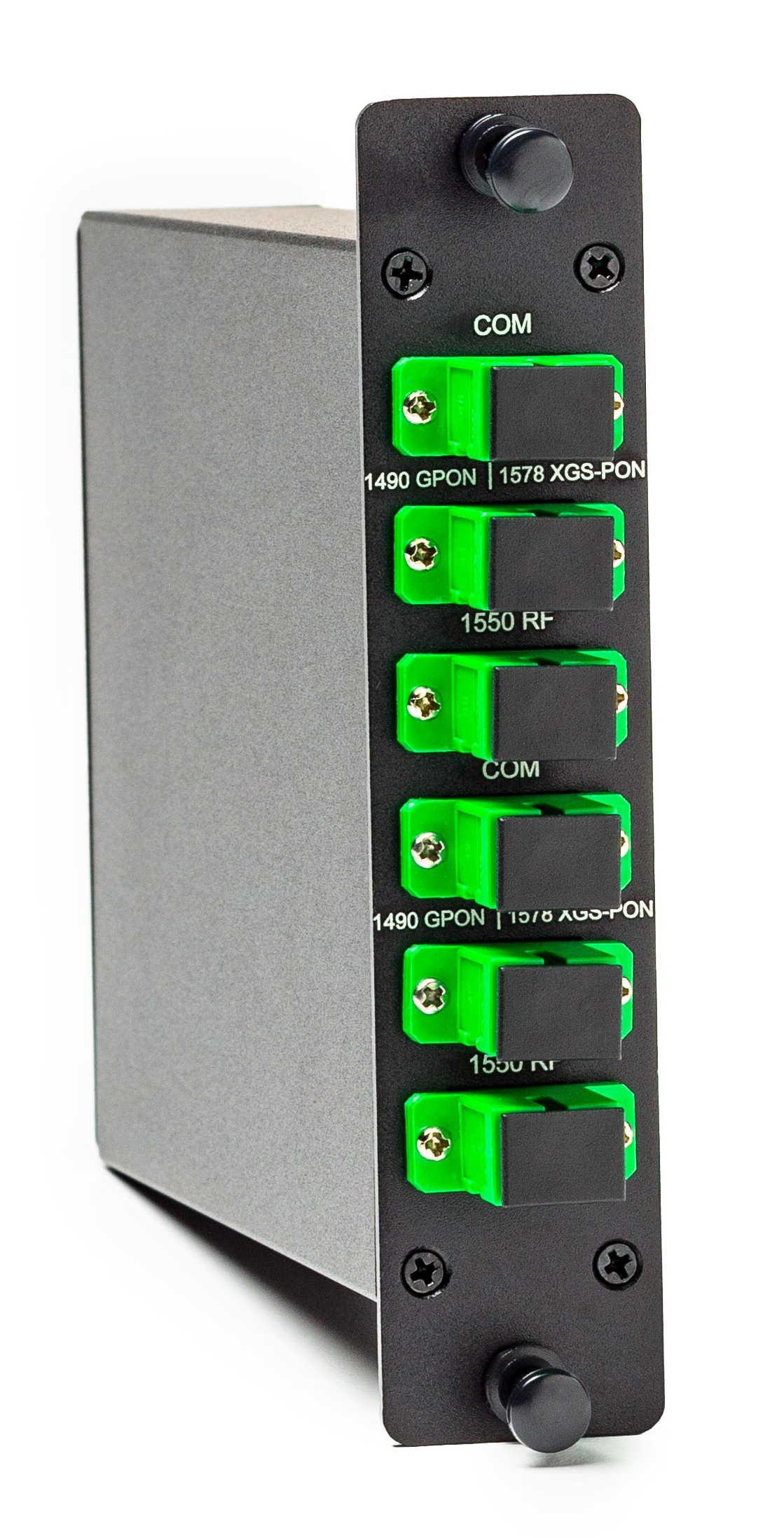

2x CEx GPON&XGX RF LGX

Coexistence CEx

Add Product to Quote

Part No.
For a Custom Design Configuration of this Product Provide Your Request Here

Product Details

The Coexistence Element CEx is a versatile WDM device that consolidates existing GPON services with a suite of high-bandwidth options, including XGS (10G), NGPON2 (TWDM up to 40G), 25GS, and the latest 50G technology. Montclair Fiber Optics offers a flexible platform of Coexistence Element products to fit your specific PON deployment needs in the most cost-effective way. Each CEx can be fully equipped with all PON services or tailored to include only the services you require. The Coexistence Element provides additional provisioning wavelengths, including RF, OTDR Monitor, NG-PON2, and Point-to-Point (PtP). Premium optical components and high-quality connectivity ensure superior performance, minimal loss, and robust network reliability. CEx products are available in a variety of form factors, including LGX® modules, ruggedized cassettes, rack-mount units, high-density configurations, and customized housings.

Features

  • Excellent environmental & mechanical stability
  • High isolation
  • Low insertion loss & PDL
  • Premium grade components & connectivity

Applications

Standards

Product Specifications

Adapter options LC/APC, LC/UPC, SC/APC, SC/UPC
Adapter Type LC/APC & LC/UPC, SC/APC & SC/UPC
CEx type 2x CEx High-Density LGX LC/APC & LC/UPC adapter ports, 2x CEx High-Density LGX LC/APC & LC/UPC adapter ports (Monitor port), 1x CEx LGX LC/APC & LC/UPC adapter ports, 1x CEx LGX LC/APC & LC/UPC adapter ports (Monitor port), 1x CEx LGX SC/APC & SC/UPC adapter ports, 1x CEx LGX SC/APC & SC/UPC adapter ports (Monitor port), 1x CEx Ruggedized Cassette LC/APC & LC/UPC 1 meter 2.0mm outdoor-rated fiber cable, 1x CEx Ruggedized Cassette LC/APC & LC/UPC 1 meter 2.0mm outdoor-rated fiber cable (Monitor port), 1x CEx Ruggedized Cassette SC/APC & SC/UPC 1 meter 2.0mm outdoor-rated fiber cable, 1x CEx Ruggedized Cassette SC/APC & SC/UPC 1 meter 2.0mm outdoor-rated fiber cable (Monitor port)
GPON Passband Channel Wavelength (nm) 1290 - 1330, 1480 - 1500
NG-PON2 (TWDM) Passband Channel Wavelength (nm) 1532 - 1540, 1595 - 1603
XGS-PON Passband Channel Wavelength (nm) 1260 - 1280, 1575 - 1580
RF Passband Channel Wavelength (nm) 1550 - 1560
PtP Passband Channel Wavelength (nm) 1610 - 1625
OTDR Monitor Passband Channel Wavelength (nm) 1625 - 1675
GPON Insertion Loss (dB max.) 1.0
NG-PON2 (TWDM) Insertion Loss (dB max.) 1.0
XGS-PON Insertion Loss (dB max.) 1.0
RF Insertion Loss (dB max.) 1.2
PtP Insertion Loss (dB max.) 1.6
GPON Isolation (dB min.) 45
NG-PON2 (TWDM) Isolation (dB min.) 30
XGS-PON Isolation (dB min.) 30
RF Isolation (dB min.) 12
PtP Isolation (dB min.) 30
Return loss (dB min.) - includes connectors 50
Insertion loss temperature sensitivity (dB/°C min.) 0.005
Directivity (dB min.) 50
Polarization dependent loss (dB max.) 0.30
Polarization mode dispersion (ps max.) 0.20
Passband Ripple (dB max.) 0.30
Maximum optical power (mW max.) 300
Operating temperature (°C) -5 to +75
Storage temperature (°C) -40 to +85
LGX® single slot wide module (mm) 129 x 125 x 28
Connector/Adapter type for GPON, NG-PON2, XGS-PON, PtP, OTDR ports LC/UPC, SC/UPC
Connector/Adapter type for RF and Common ports LC/APC, SC/APC
