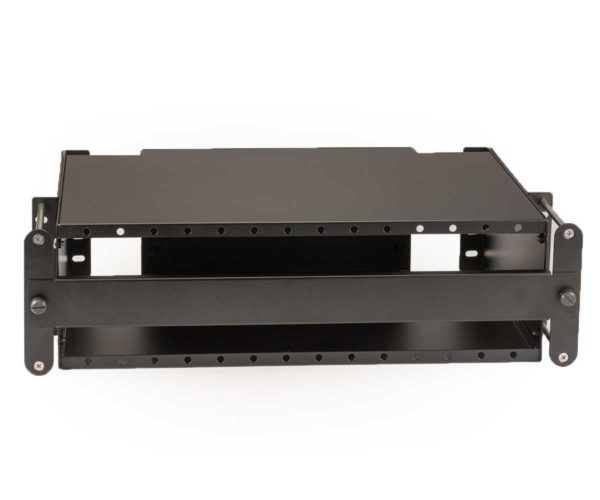

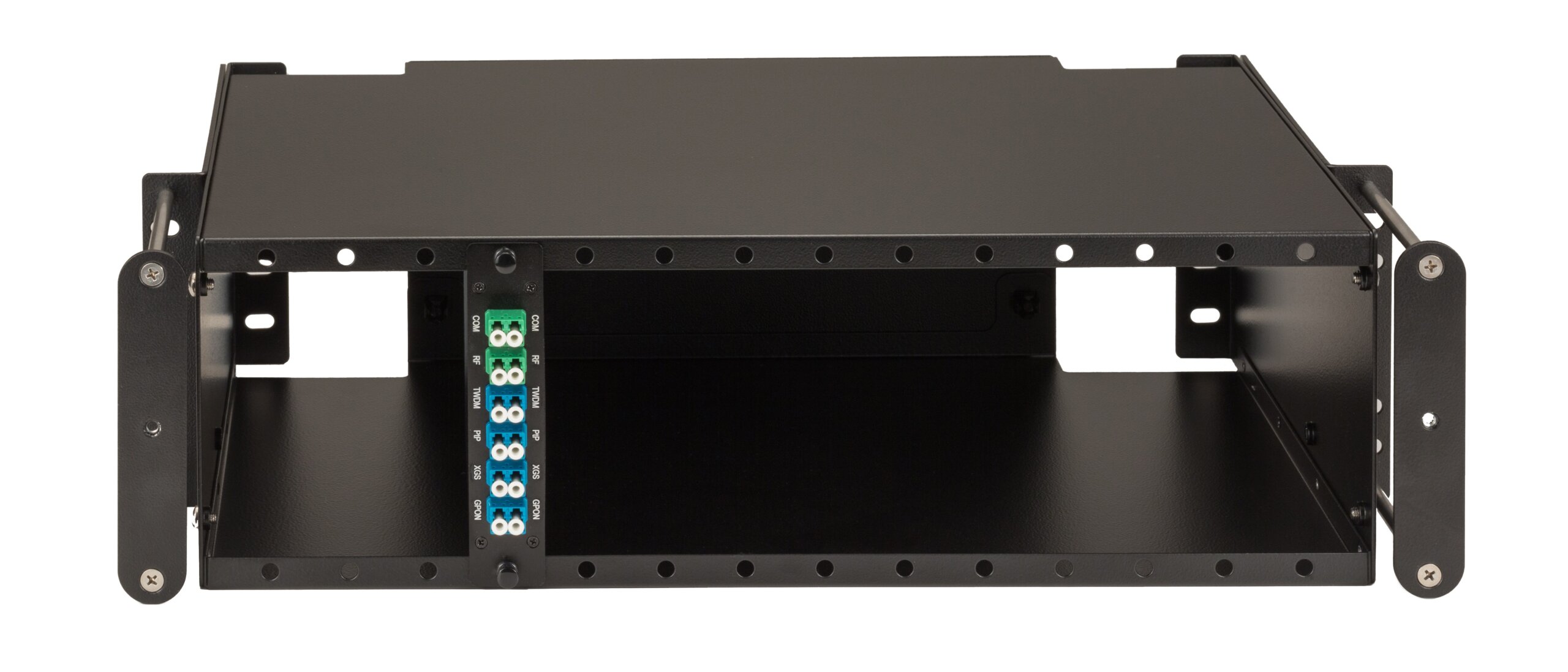

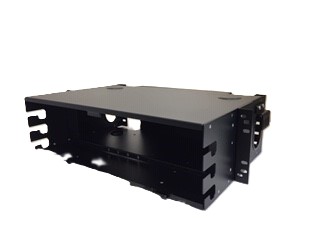

3U Rack-Mount LGX® Panel

Add Product to Quote

Part No.
For a Custom Design Configuration of this Product Provide Your Request Here

Product Details

Up to 72 fiber splices & terminations. 72 fiber rack-mount 3U splice & term panel.


  • 3U 3 rack-unit high
  • Accepts cables from front, rear, top or bottom

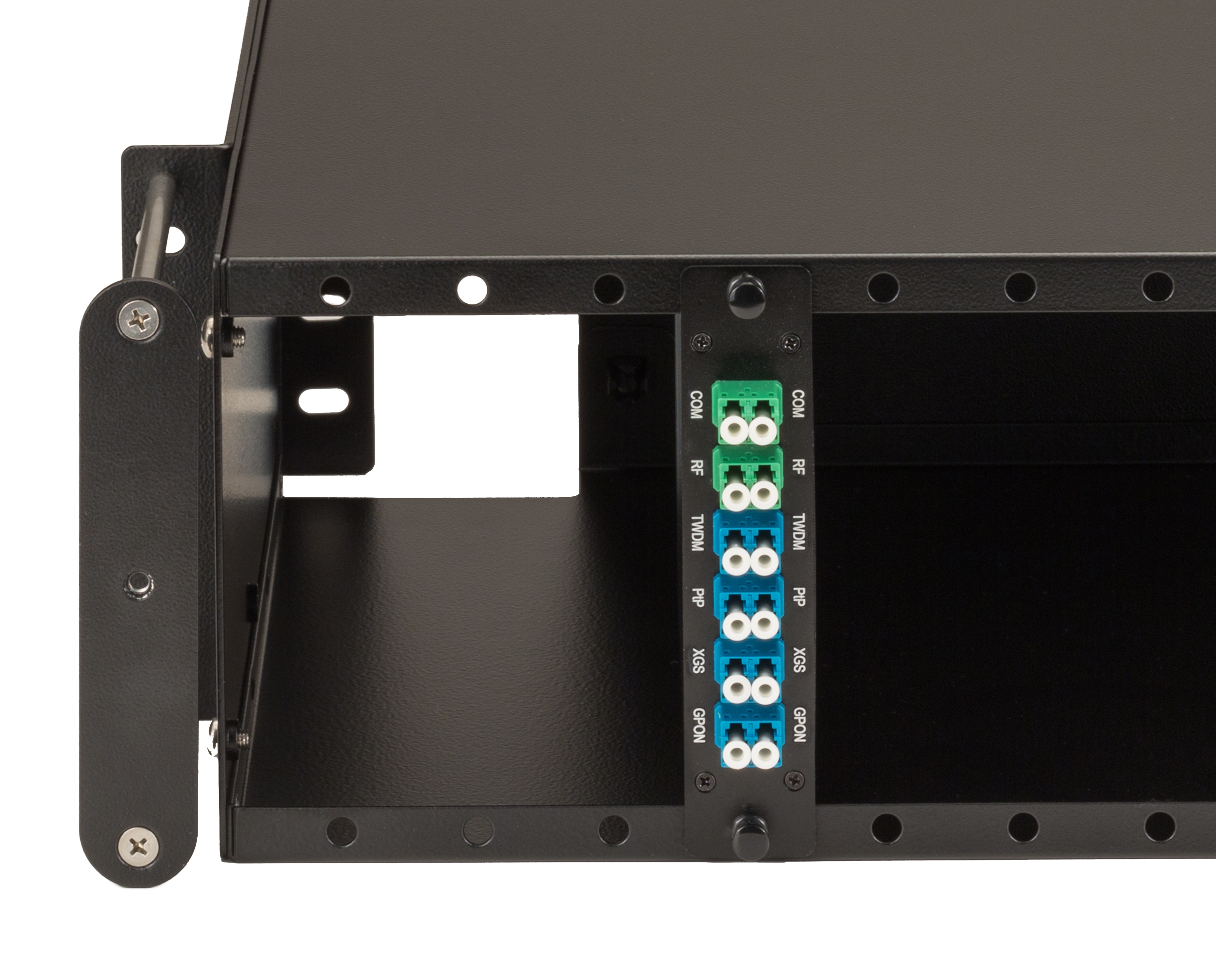

  • Accepts up to (6) standard LGX-style adapter plates or cassettes
  • Accommodates up to (3) 10″ splice trays
  • Cable storage plates included
  • Durable powder coat finish
  • Mounts in 19” and 23” racks with reversible brackets
  • Removable front hinged door and back cover
  • Stackable
  • Standard 5” rack projection or optional flush mount

Product Specifications

No. Fiber Terminations For Unloaded Panel, 48, 72, 96, 144
Dimensions 5.25” h X 17” w X 12” d
Adapter / Connector type For Unloaded Panel, LC/APC, LC/UPC, SC/APC, SC/UPC
Weight 15lbs
Housing type LGX®
Material 16 Gauge CRS
Powder Coat Finish standard dove gray (beige), black
