24 Fiber Wall-mount Splice & Term Panel

Add Product to Quote

Part No.
For a Custom Design Configuration of this Product Provide Your Request Here

Product Details

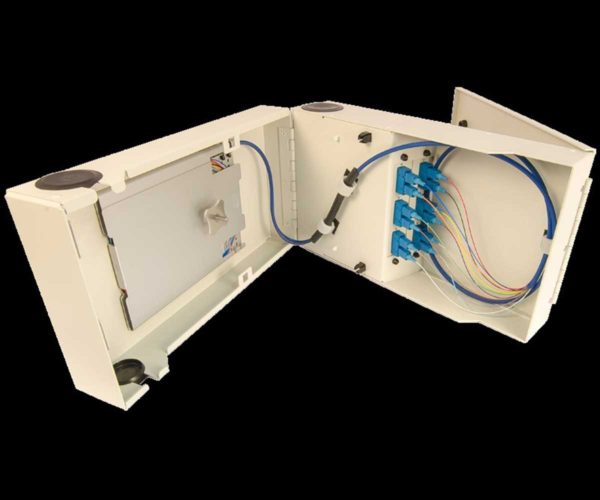

Up to 24 fiber splices & terminations. 24 fiber wall-mount splice & term Z fold panel.


  • Accepts up to (2) standard LGX-style adapter plates
  • Accessory Kit with Cable Ties and Clips
  • Compact, efficient design
  • Dims: 12.10″ L x 7″ W x 4.08″ D
  • Finish: durable powder coat finish in standard dove gray (beige) or black
  • Front access via fully removable sliding internal shelf
  • Holds up to (2) 12 fiber fusion splice trays (total 24 splices), 7” splice trays
  • Material: 16 Gauge Aluminum
  • Optional lock available
  • Weight: 5 lbs (empty)

Product Specifications

No. Fiber Terminations For Unloaded Panel, 12, 24
Adapter / Connector type For Unloaded Panel, LC/APC, LC/UPC, SC/APC, SC/UPC
Splice Option For Unloaded Panel, NO, YES
