Bulkhead Adapters
Add Product to Quote
Product Variations
Select a product variation and ‘Save’ to add the product to your quote.
| Part No. | Adapter Type | Fiber Mode Type | |
|---|---|---|---|
| MAA-AFC/SM | FC/APC Square simplex | Singlemode | |

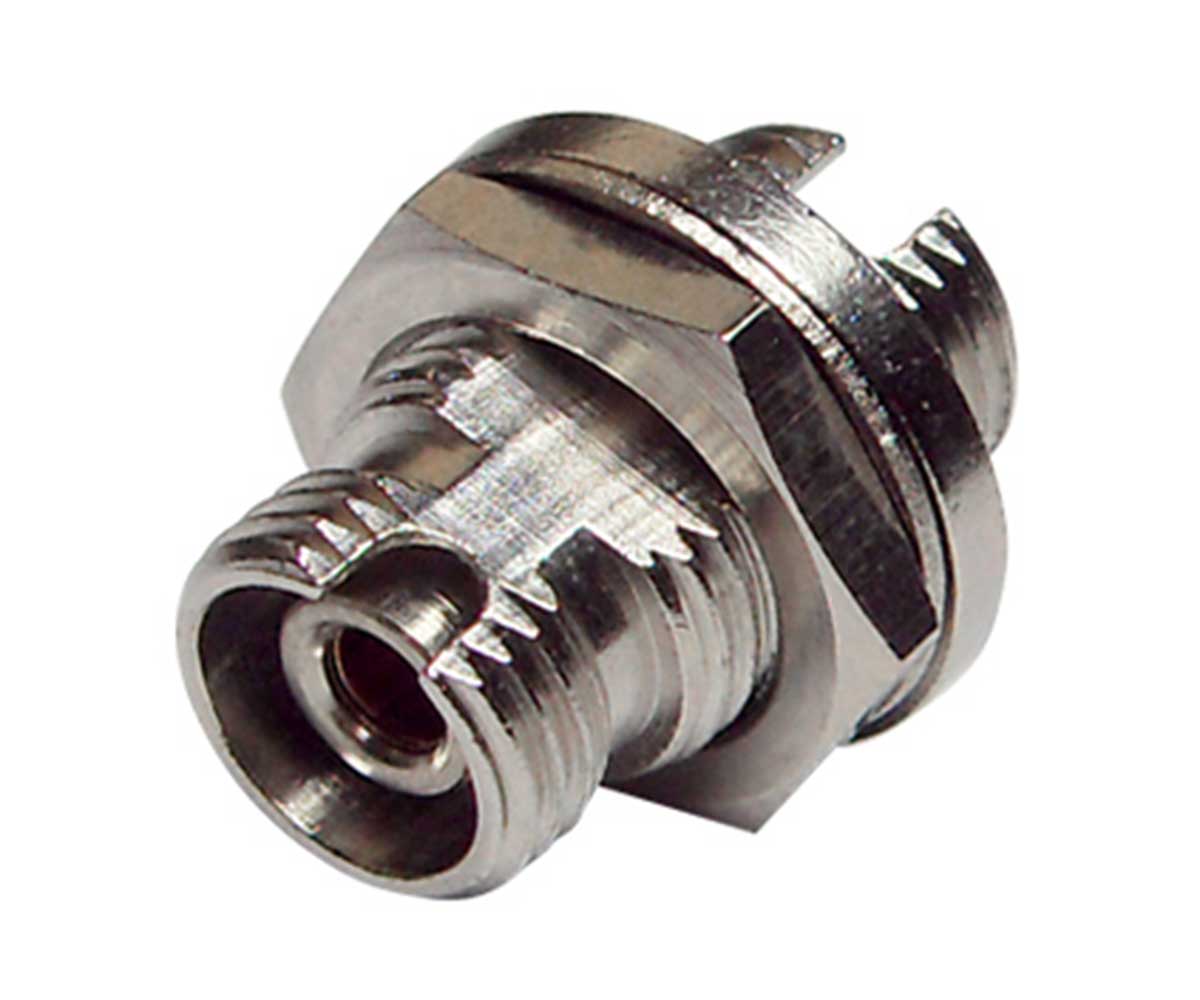

| MAA-AFCD/SM | FC/APC D-shape simplex | Singlemode | |

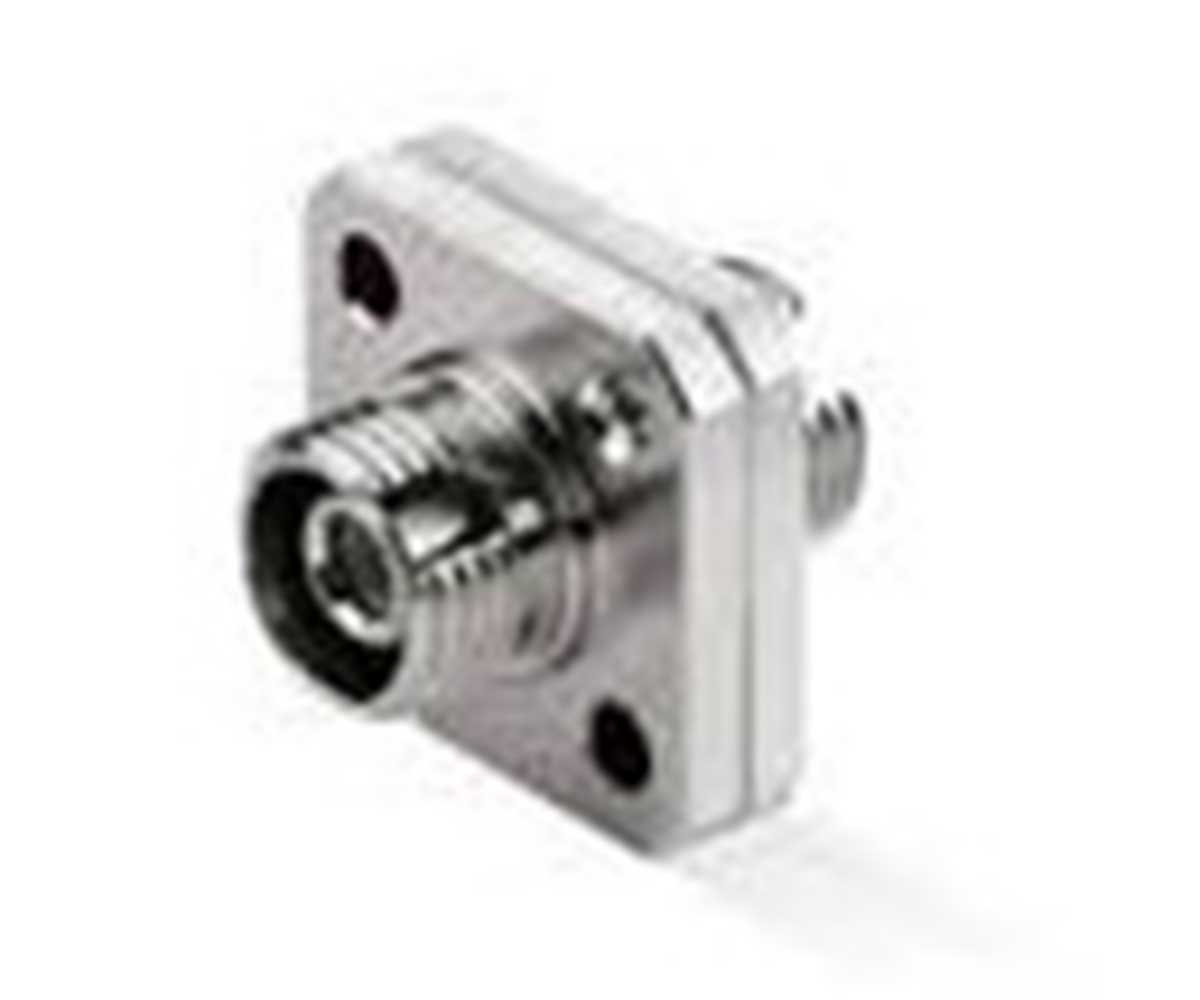

| MAA-FC/SM | FC/PC Square simplex | Singlemode | |
| MAA-FCD/SM | FC/PC D-shape simplex | Singlemode | |

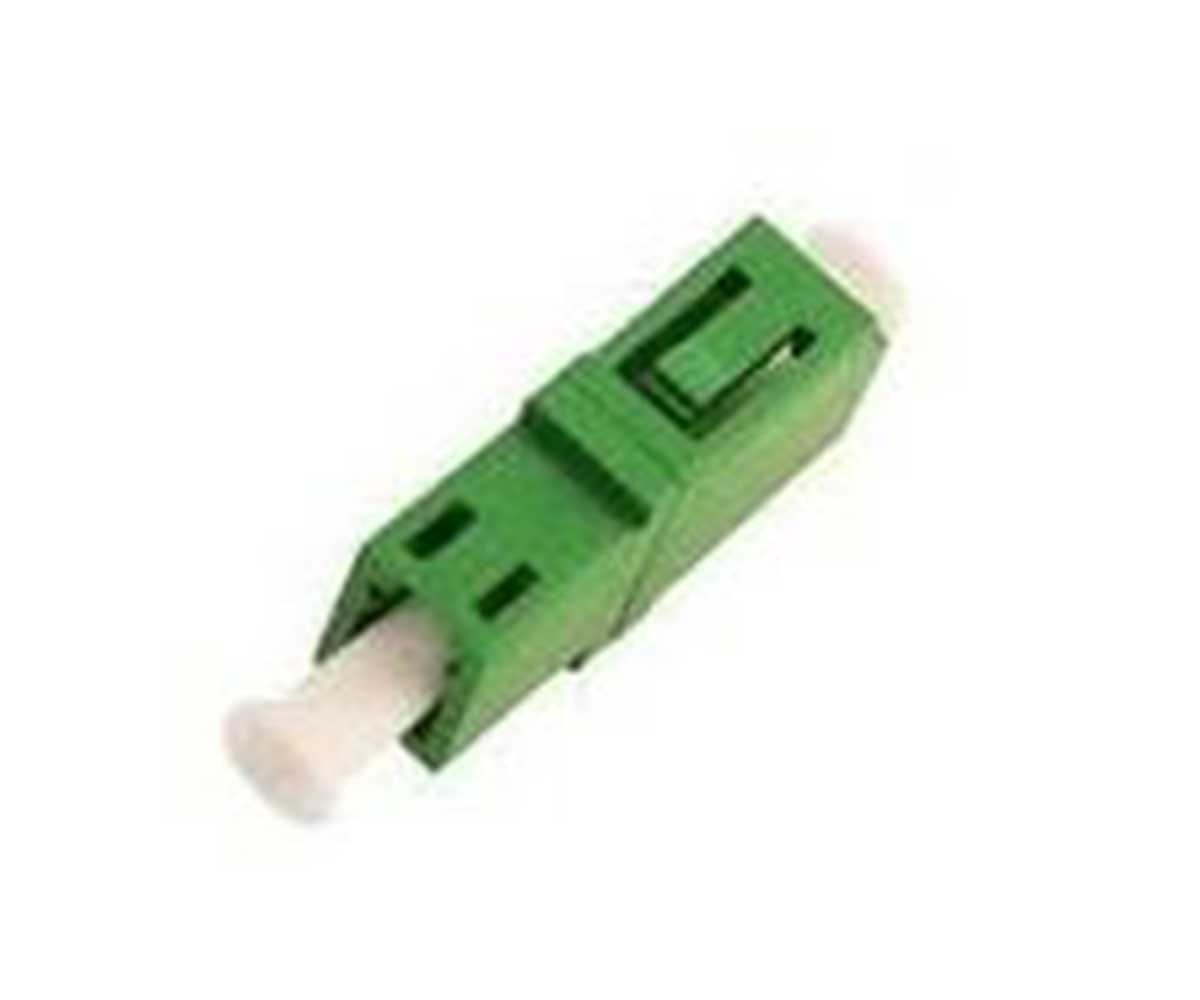

| MAA-ALC/SM | LC/APC simplex | Singlemode | |

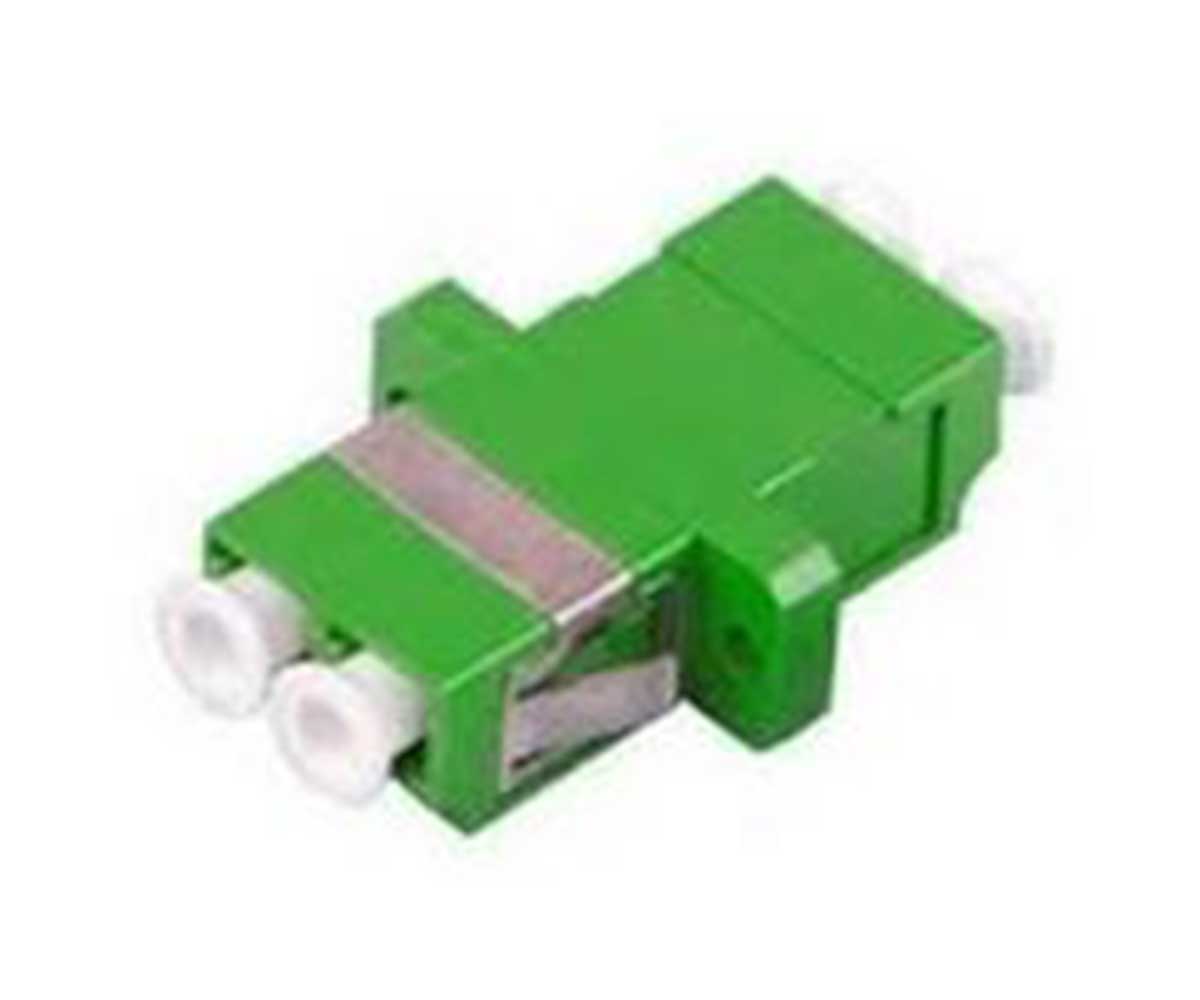

| MAA-ALCD/SM | LC/APC duplex | Singlemode | |

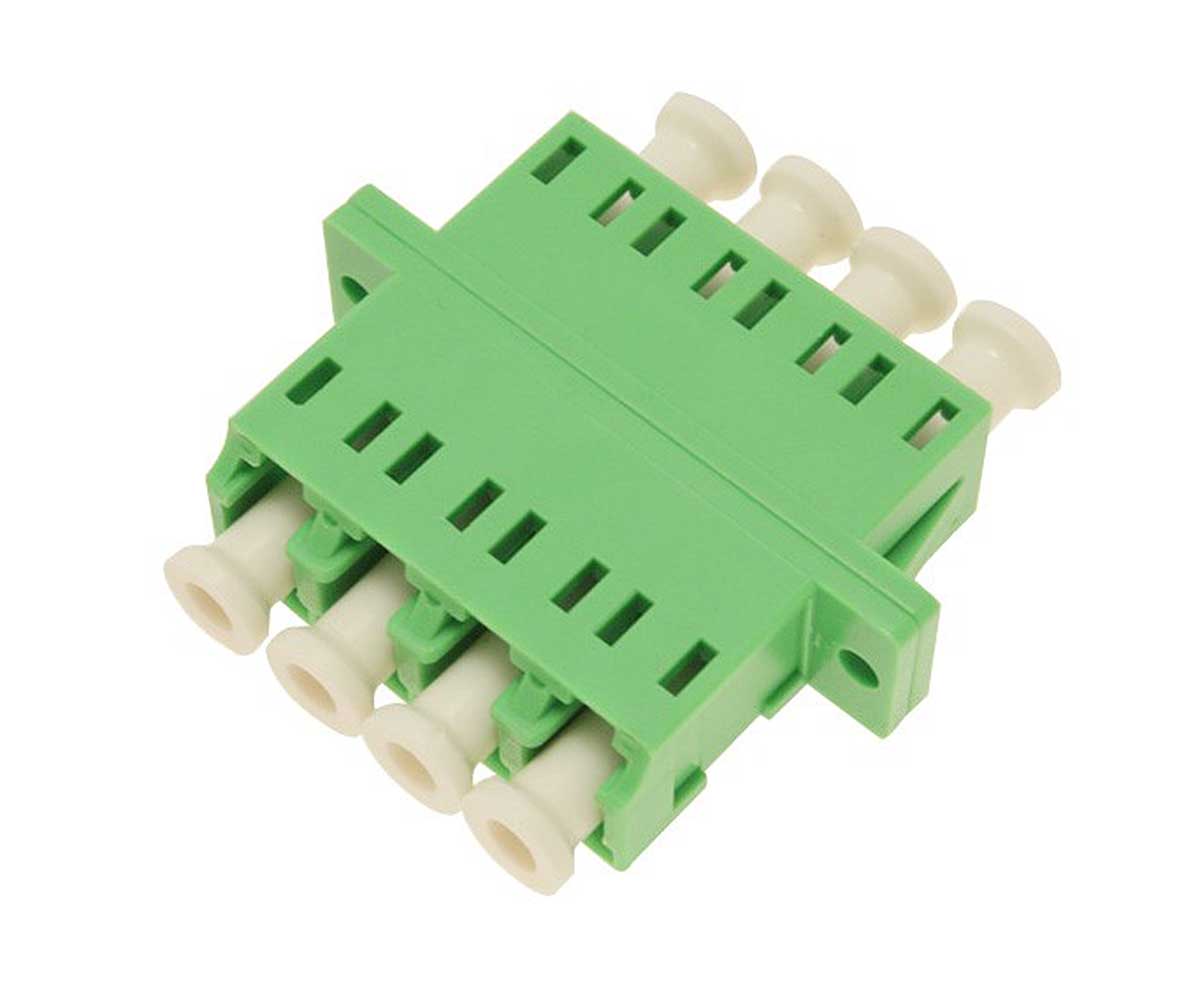

| MAA-ALCQ/SM | LC/APC quad | Singlemode | |

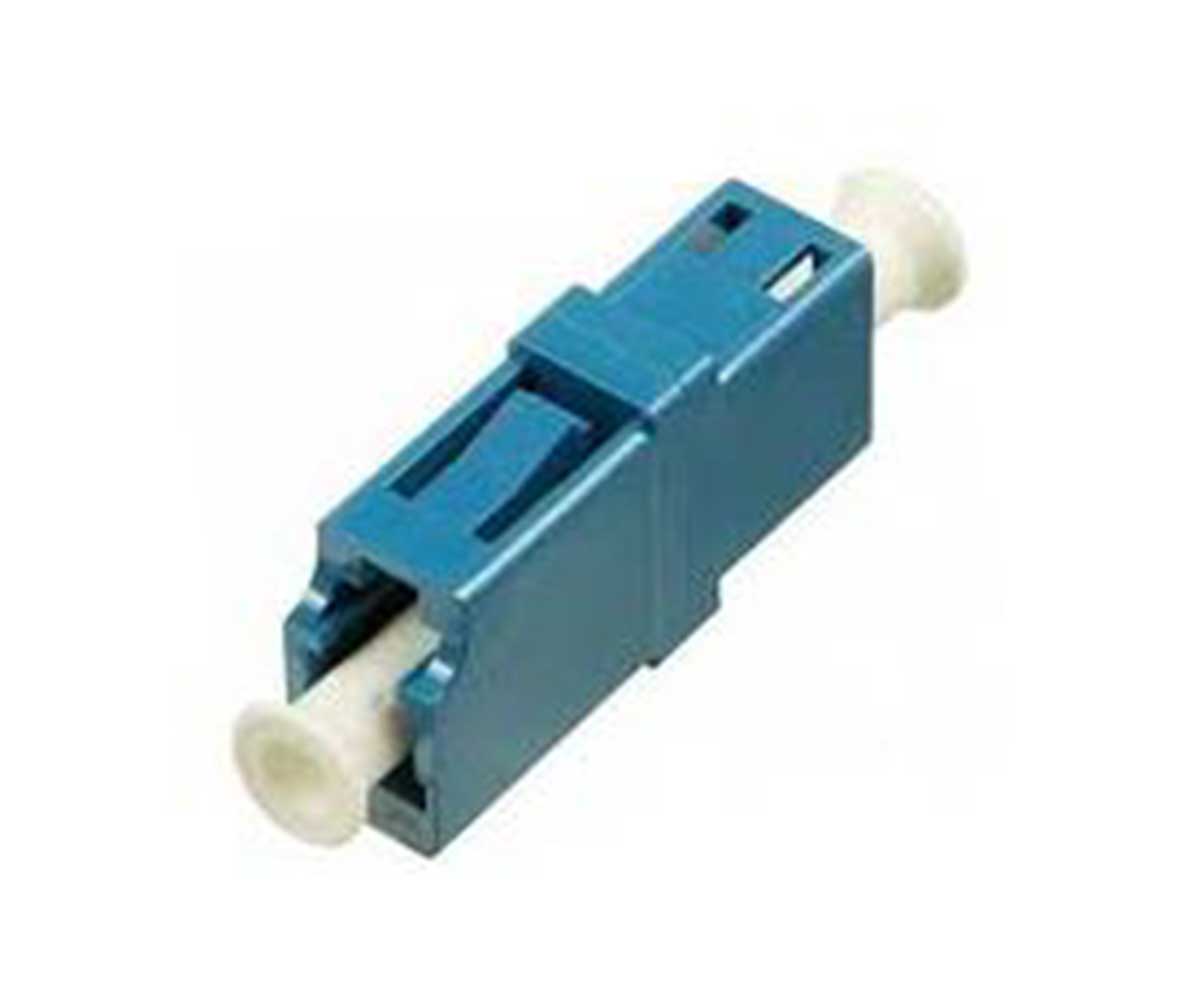

| MAA-LC/SM | LC/PC simplex | Singlemode | |

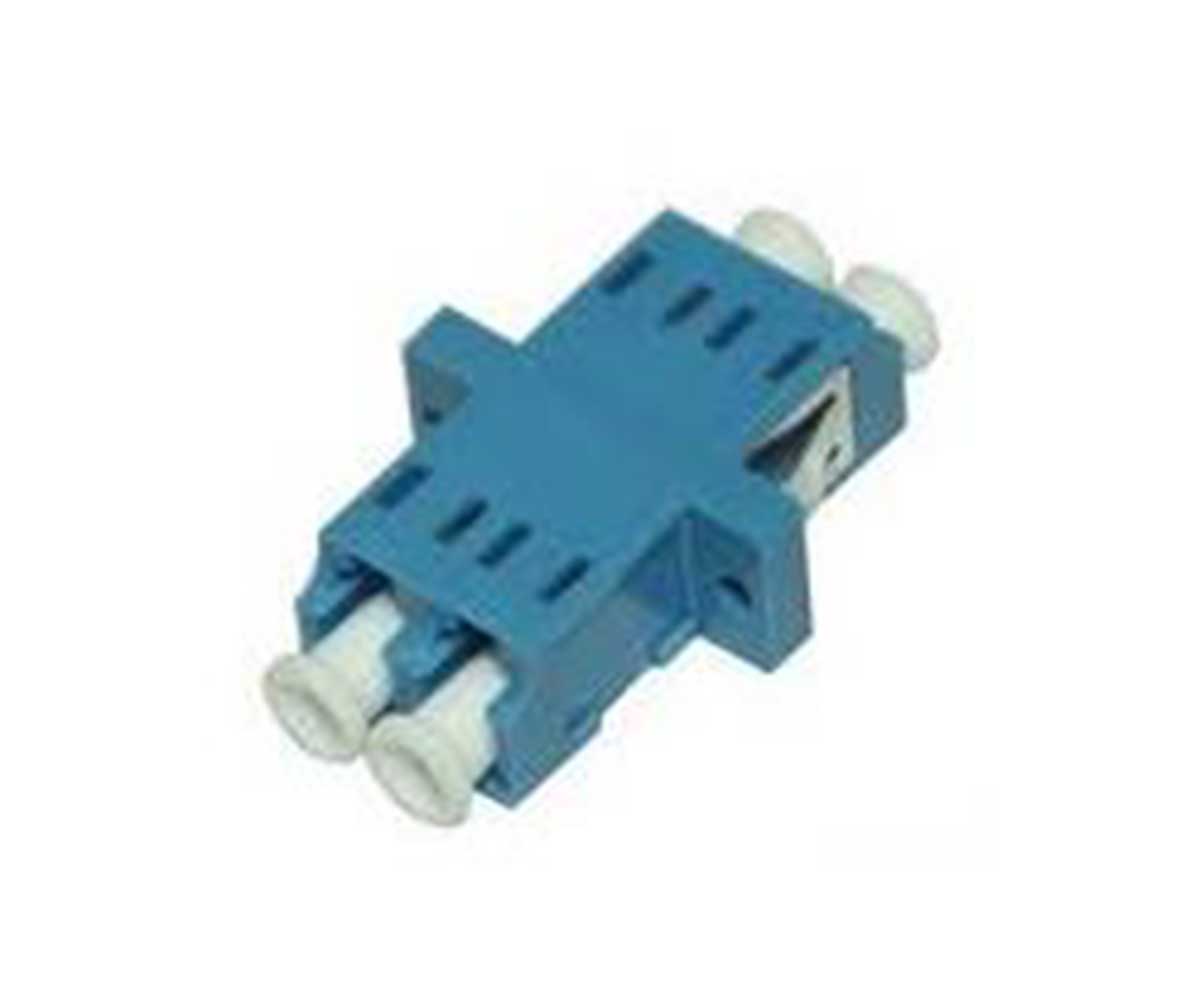

| MAA-LCD/SM | LC/PC duplex | Singlemode | |
| MAA-LCQ/SM | LC/PC quad | Singlemode | |

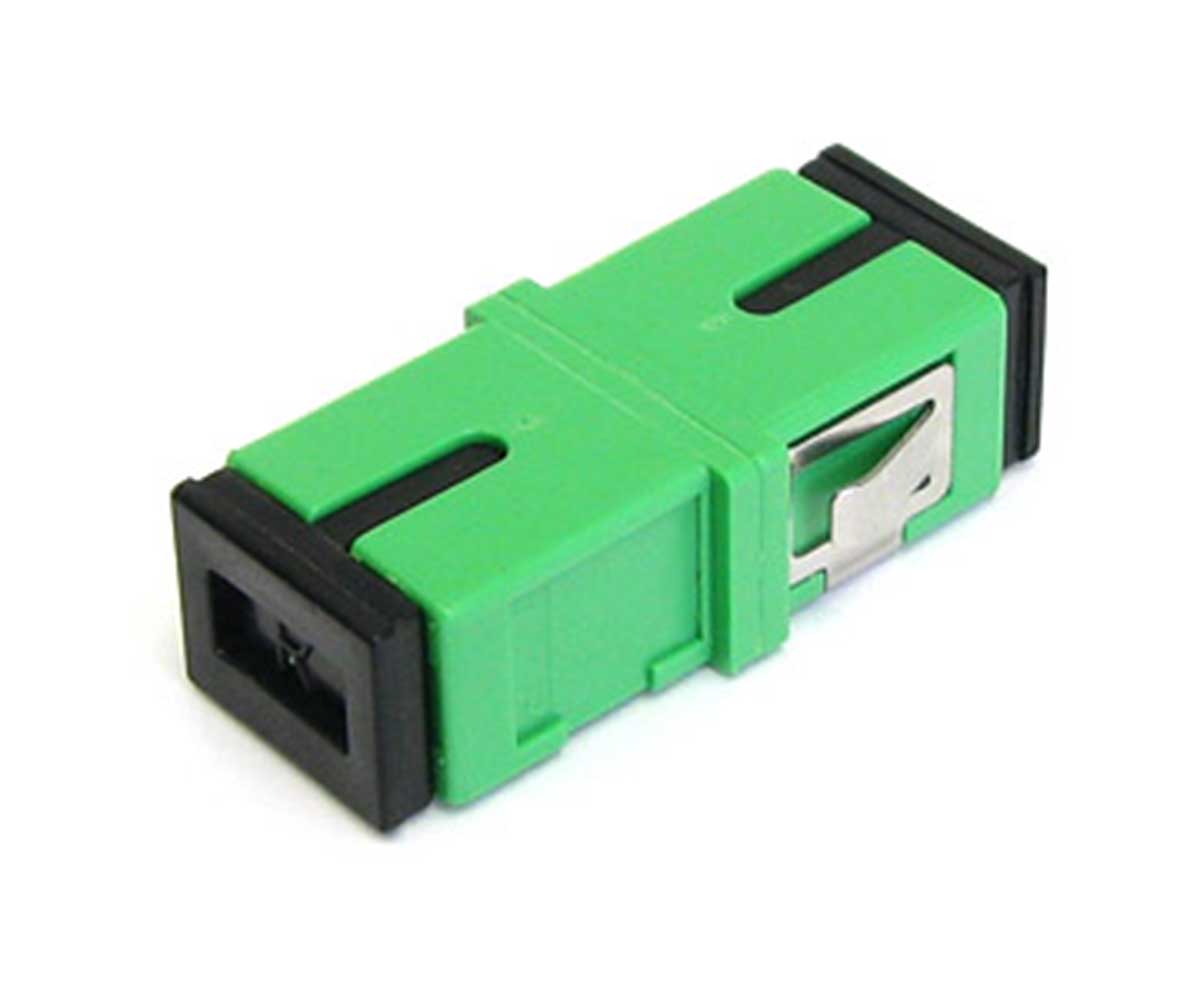

| MAA-ASC/SM | SC/APC simplex | Singlemode | |

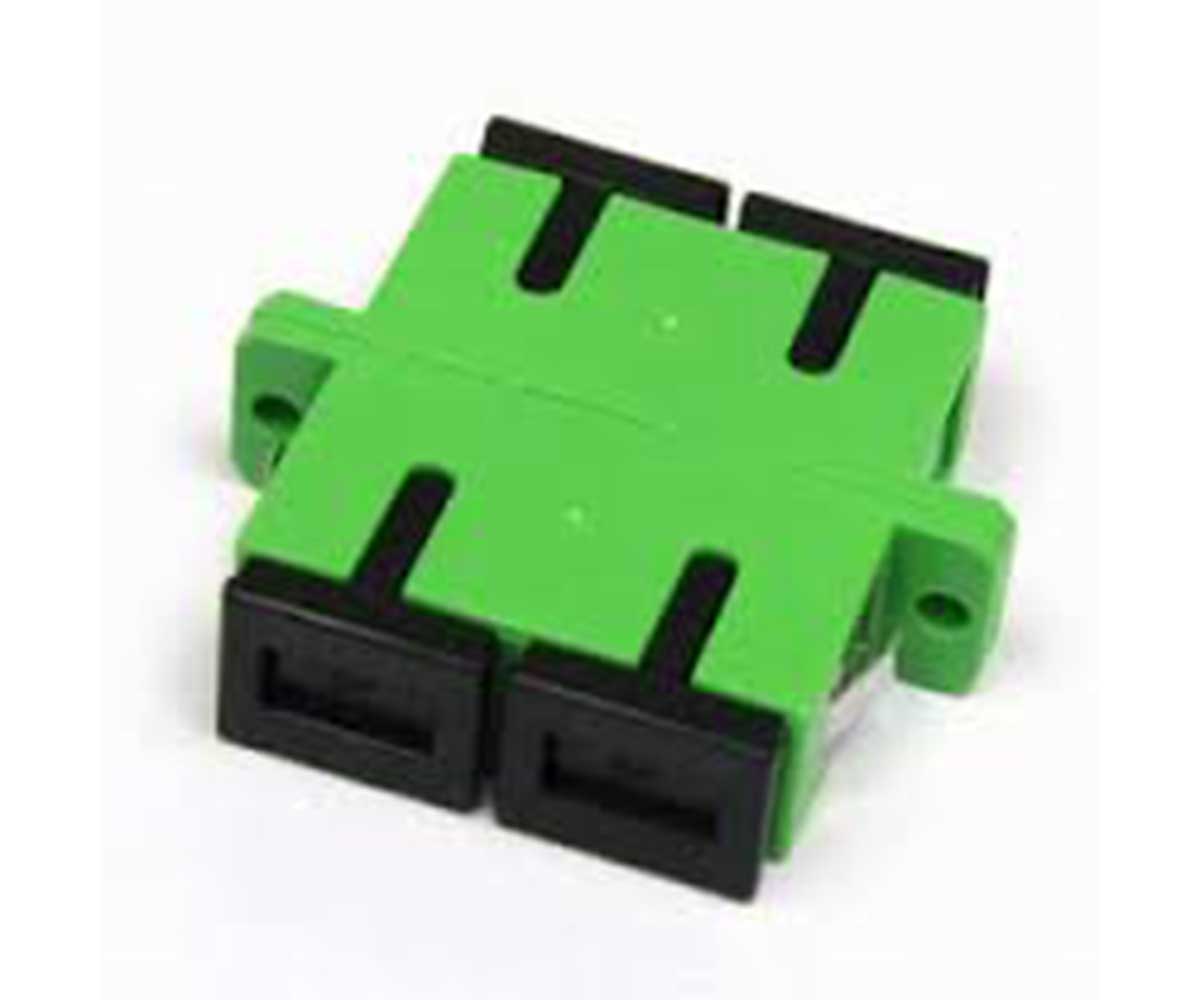

| MAA-ASCD/SM | SC/APC duplex | Singlemode | |
| MAA-SC/SM | SC/PC simplex | Singlemode | |

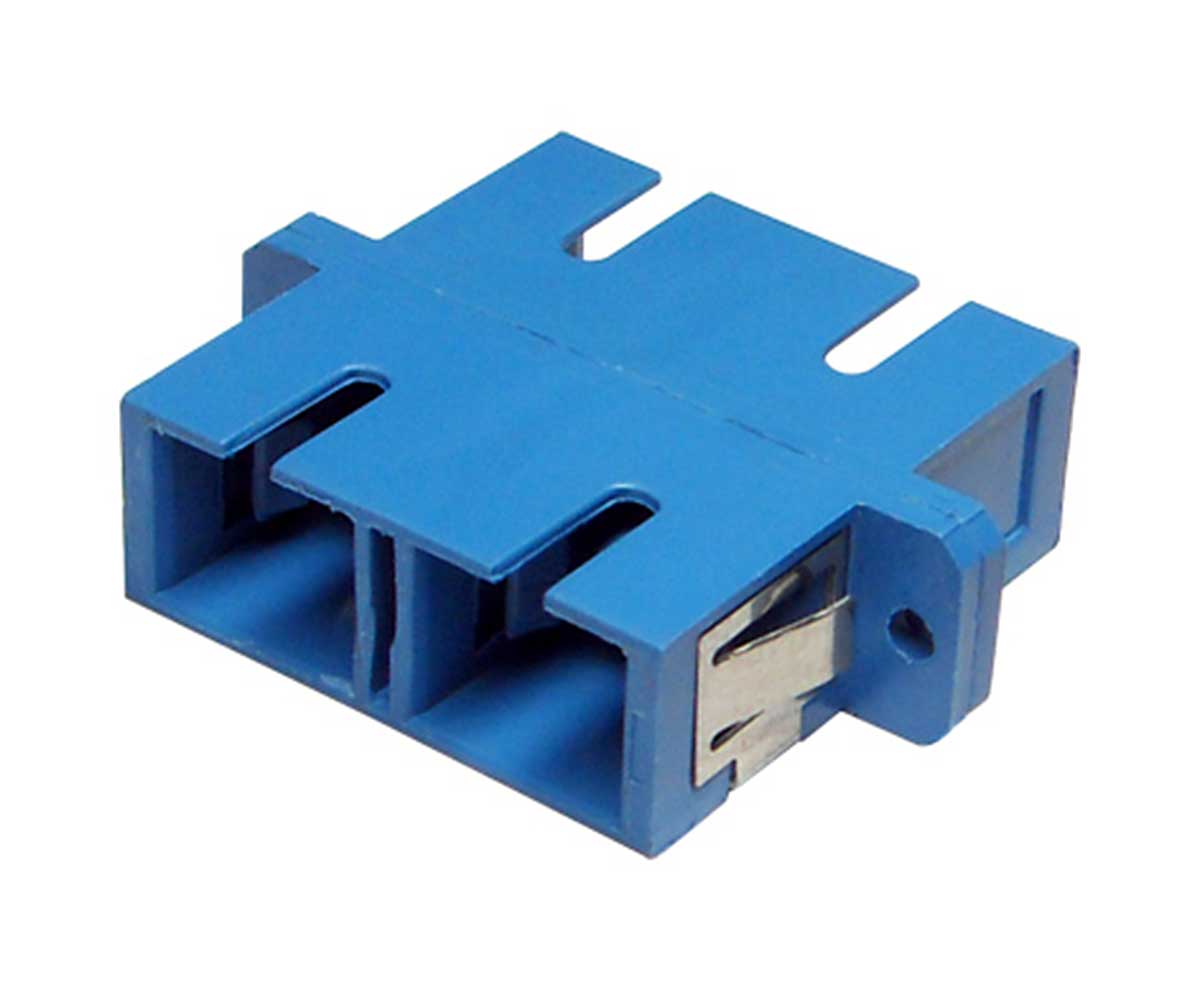

| MAA-SCD/SM | SC/PC duplex | Singlemode | |

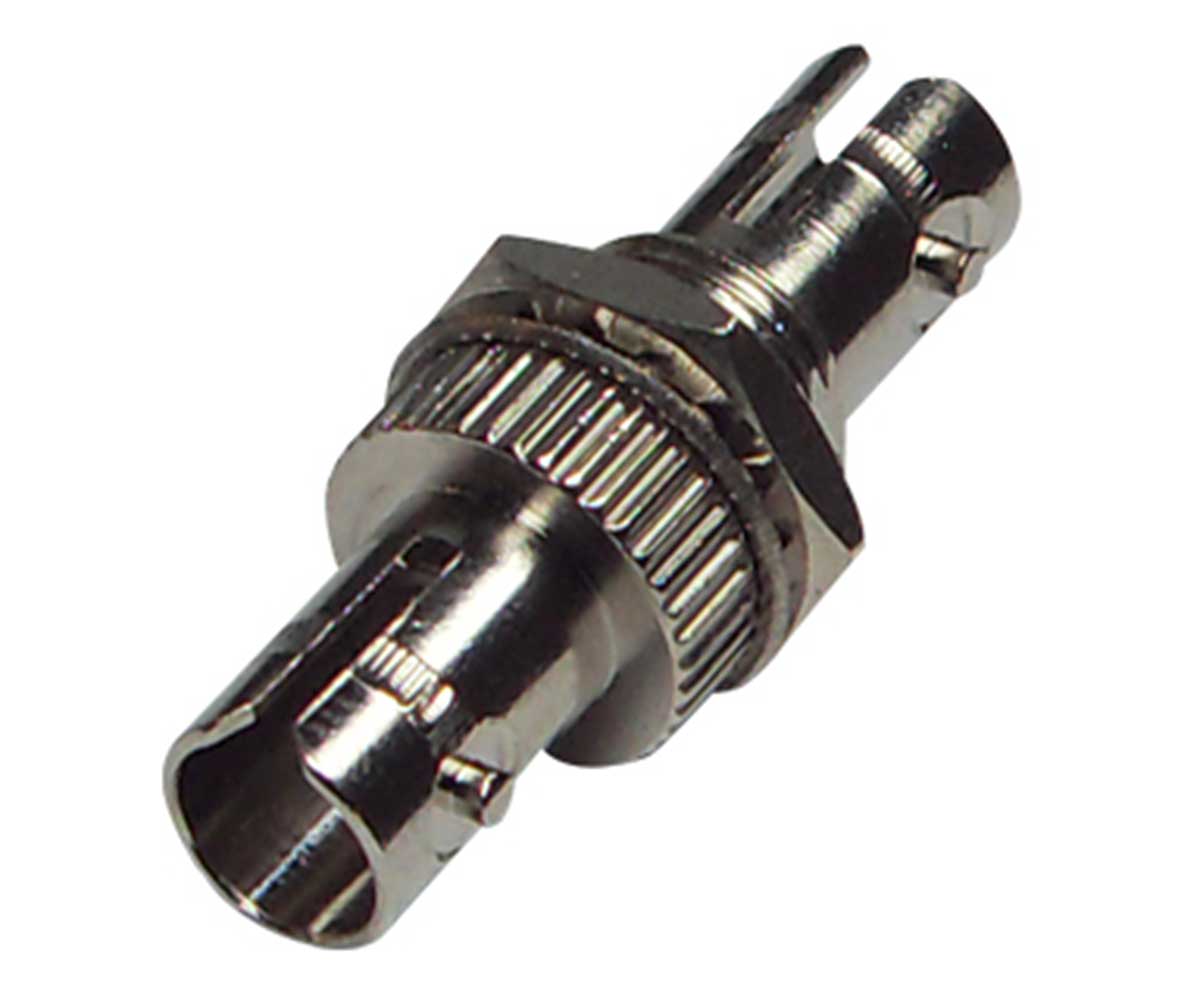

| MAA-ST/SM | ST/PC simplex | Singlemode | |
| MAA-STD/SM | ST/PC duplex | Singlemode | |
| MAA-LC/MM | LC/PC simplex | Multimode OM1&2 | |
| MAA-LCD/MM | LC/PC duplex | Multimode OM1&2 | |
| MAA-LCQ/MM | LC/PC quad | Multimode OM1&2 | |
| MAA-LC/MM(OM3/4) | LC/PC simplex | Multimode OM3&4 | |
| MAA-LCD/MM(OM3/4) | LC/PC duplex | Multimode OM3&4 | |
| MAA-LCQ/MM(OM3/4) | LC/PC quad | Multimode OM3&4 | |
| MAA-SC/MM | SC/PC simplex | Multimode OM1&2 | |
| MAA-SCD/MM | SC/PC duplex | Multimode OM1&2 | |
| MAA-SC/MM(OM3/4) | SC/PC simplex | Multimode OM3&4 | |
| MAA-SCD/MM(OM3/4) | SC/PC duplex | Multimode OM3&4 | |
| MAA-ST/MM | ST/PC simplex | Multimode OM1&2 | |
| MAA-STD/MM | ST/PC duplex | Multimode OM1&2 |
No Results
For a Custom Design Configuration of this Product Provide Your Request Here
Product Details
Adapters are manufactured with quality zirconia sleeves and provide tight-tolerance to ensure low insertion loss. We offer a wide selection of high-quality fiber optic bulkhead (female to female) adapters for mating connectors.
Features
- Available installed in adapter plates
- High precision alignment
- Low insertion loss & PDL
- Simplex, Duplex, and Quad designs
- Singlemode and Multimode
Applications
Product Specifications
Insertion Loss (dB)
≤ 0.20
Adapter Type
FC/APC Square simplex, FC/APC D-shape simplex, FC/PC Square simplex, FC/PC D-shape, LC/APC simplex, LC/APC duplex, LC/APC quad, LC/PC simplex, LC/PC duplex, LC/PC quad, SC/APC simplex, SC/APC duplex, SC/PC simplex, SC/PC duplex, ST/PC simplex, ST/PC duplex, FC/PC D-shape simplex
Repeatability (dB)
≤ 0.10
Fiber Mode Type
Singlemode, Multimode OM1&2, Multimode OM3&4, Multimode
Operating temperature (°C)
-25 to +70
Available singlemode simplex adapters
FC/APC, FC/PC, LC/APC, LC/PC, SC/APC, SC/PC, ST/PC
Available singlemode duplex adapters
LC/APC, LC/PC, SC/APC, SC/PC, ST/PC
Available singlemode quad adapters
LC/APC, LC/UPC
Available multimode simplex adapters
LC/PC, SC/PC, ST/PC
Available multimode duplex adapters
LC/PC, SC/PC, ST/PC
Available multimode quad adapters
LC/UPC
