Wavelength Mux

Add Product to Quote

Product Variations

Select a product variation and ‘Save’ to add the product to your quote.

Part No.	Adapter Type	Housing type	Number of WDMs in housing \| Steel Mini Tube only available with 1 WDM

MFT-C/NGP2-WM-LCU/LCU	LC/UPC	Ruggedized cassette	1
MFT-M/NGP2-WM-LCU/LCU(2)	LC/UPC	LGX® Module	2
MFT-M/NGP2-WM-LCU/LCU	LC/UPC	LGX® Module	1
MFT-M/NGP2-WM-SCU/SCU	LC/UPC	LGX® Module	1
MFT-C/NGP2-WM-LCU/LCU(2)	SC/UPC	Ruggedized cassette	2
MFT-C/NGP2-WM-SCU/SCU	SC/UPC	Ruggedized cassette	1

No Results

Adapter Type

Housing type

Number of WDMs in housing | Steel Mini Tube only available with 1 WDM

Clear

Part No.

For a Custom Design Configuration of this Product Provide Your Request Here

Product Details

The Wavelength Mux is a passive device designed to facilitate Next Generation PON (NG-PON2) with a capacity of up to 40 Gigabits through 4 wavelengths (4x10G per port), with plans to enhance this to 80 Gigabits using 8 wavelengths (8x10G per port) in the future. This device effectively combines and separates the 4 downstream (L-Band) and upstream (C-Band) wavelengths over a single fiber. The use of premium optical components and high-quality connectivity guarantees exceptional performance, minimal loss, and strong network reliability. Wavelength Muxes are offered in various housing configurations: LGX® module, ruggedized cassette, rack-mount, and tailored housings.

Features

Available with Monitoring ports
Excellent environmental & mechanical stability
High isolation
Low insertion loss & PDL
Premium grade components & connectivity

Applications

Standards

Product Documents

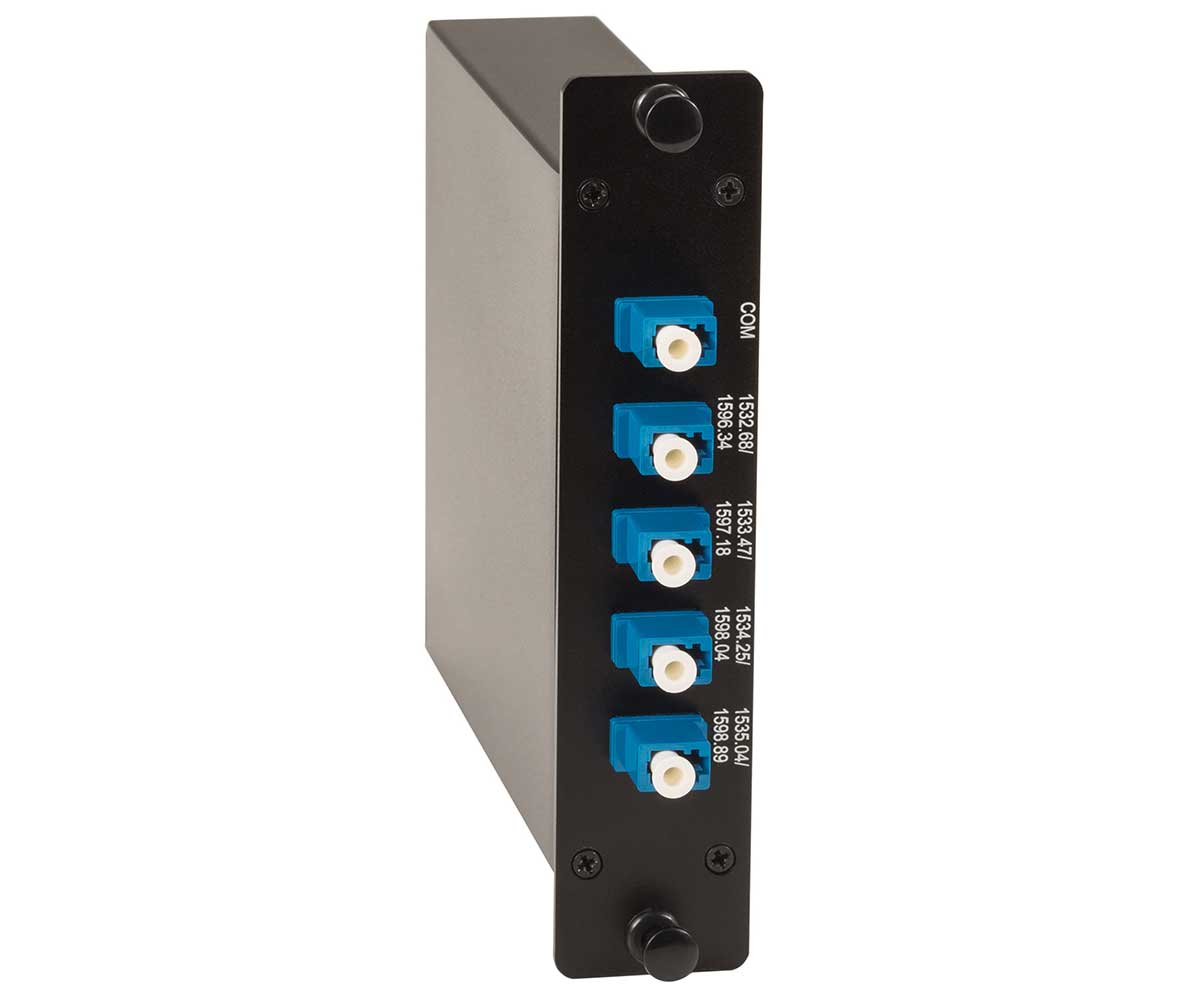

Wavelength Mux WM1 LC LGX

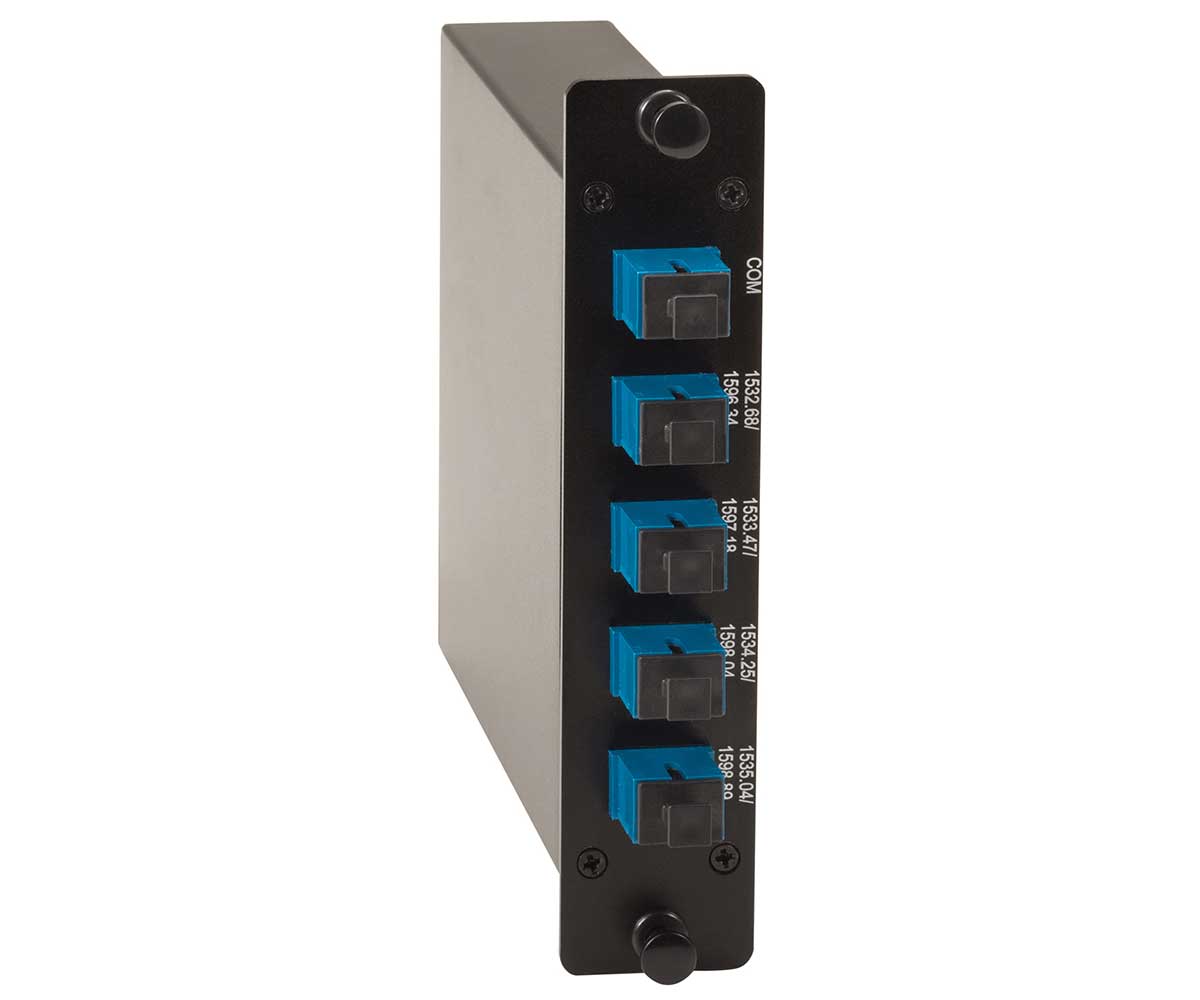

Wavelength Mux WM1 SC LGX

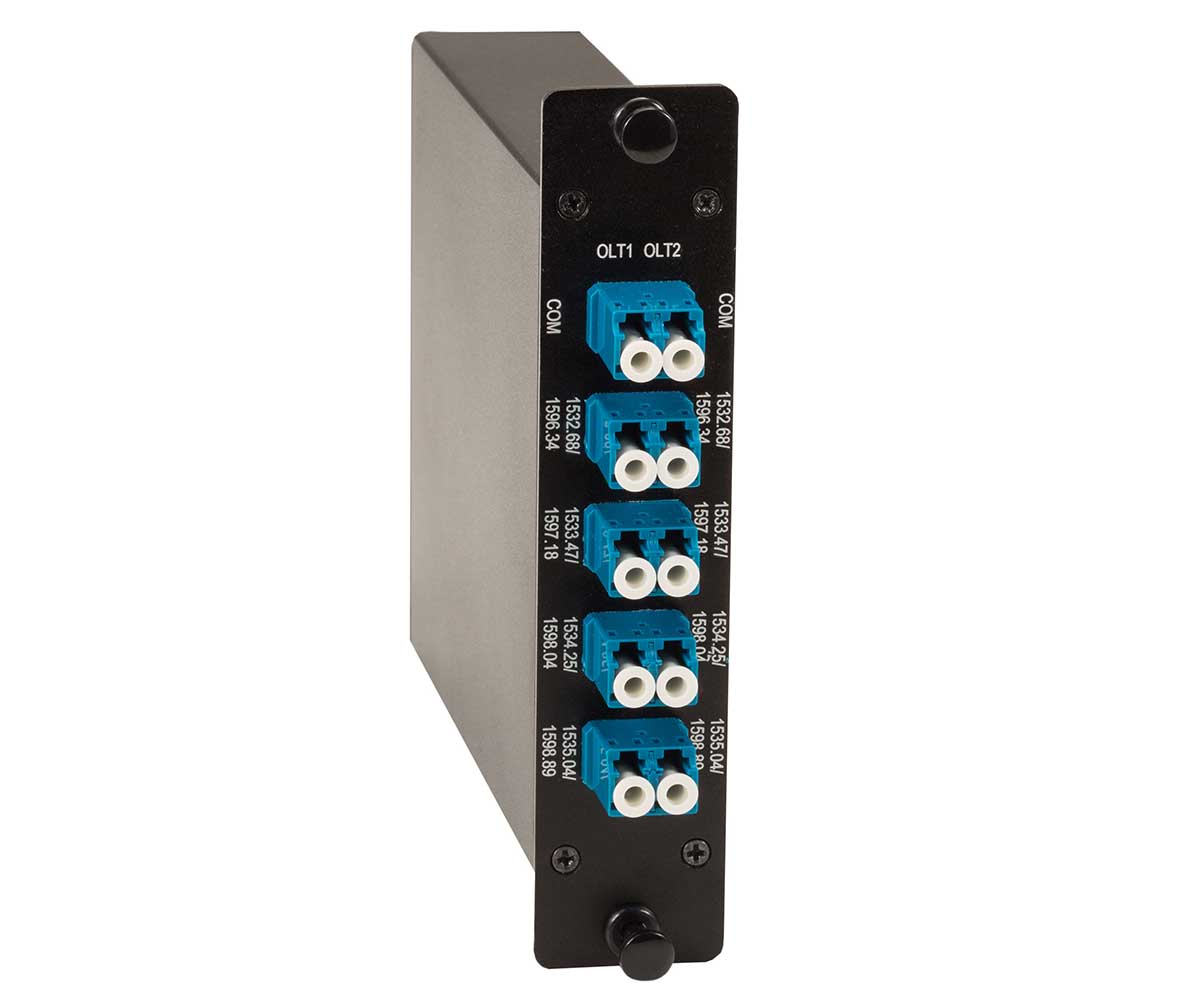

Wavelength Mux WM1 High-Density LC LGX

Product Specifications

Adapter Type LC/UPC, SC/UPC

WM1 Type 1x WM1 LGX LC/UPC adapter ports, 1x WM1 LGX SC/UPC adapter ports, 2x WM1 High-Density LGX LC/UPC adapter ports, 1x WM1 Ruggedized Cassette LC/UPC 1 meter 2.0mm outdoor-rated fiber cable, 2x WM1 High-Density Ruggedized Cassette LC/UPC 1 meter 2.0mm outdoor-rated fiber cable, 2x WM1 High-Density Ruggedized Cassette SC/UPC 1 meter 2.0mm outdoor-rated fiber cable

Housing type LGX® Module, Ruggedized cassette

Adapters (connectors) LC/APC, LC/UPC, SC/APC, SC/UPC

Number of WDMs in housing | Steel Mini Tube only available with 1 WDM 2, 1
