Small-Form Optical Splitter

Add Product to Quote

Part No.
For a Custom Design Configuration of this Product Provide Your Request Here

Product Details

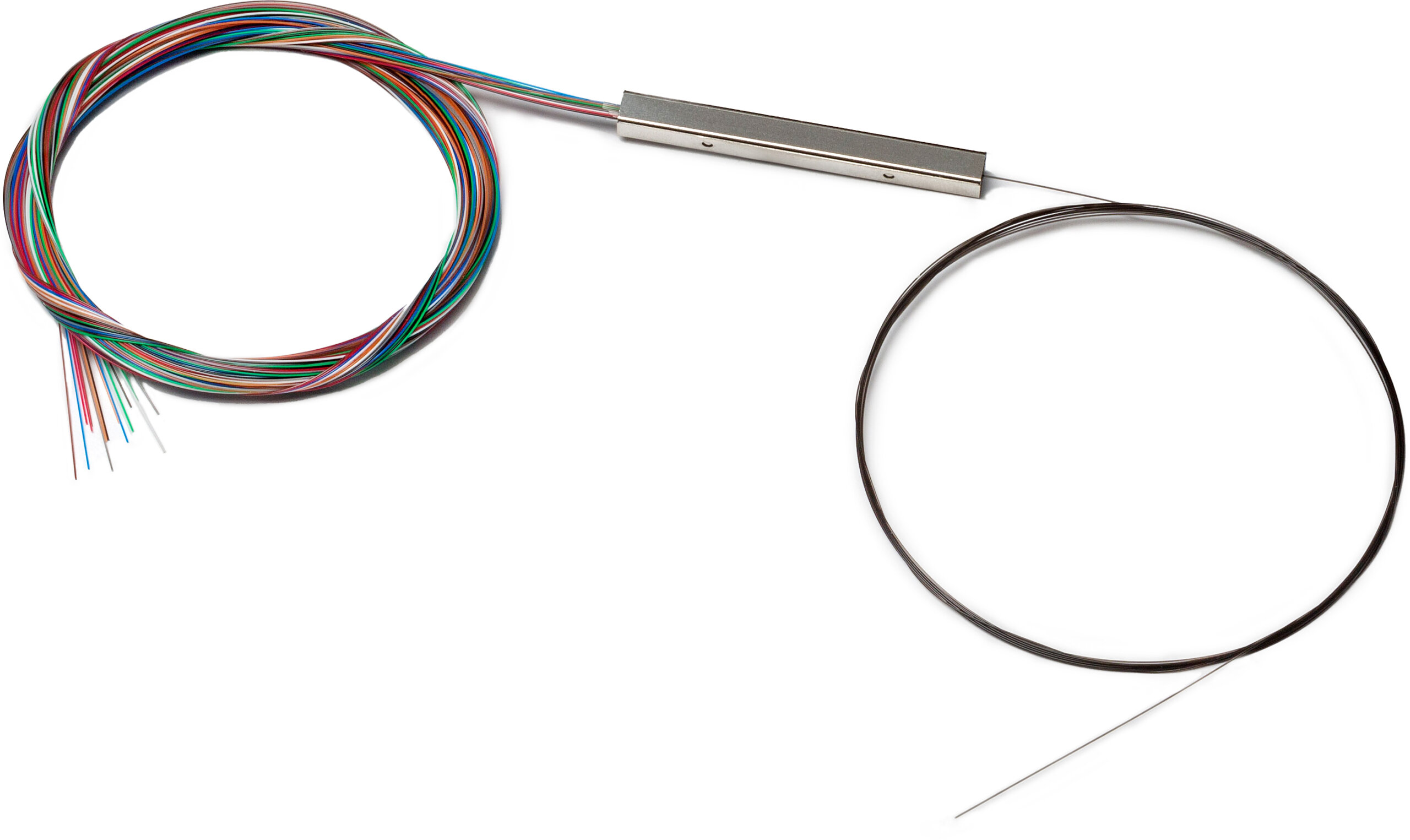

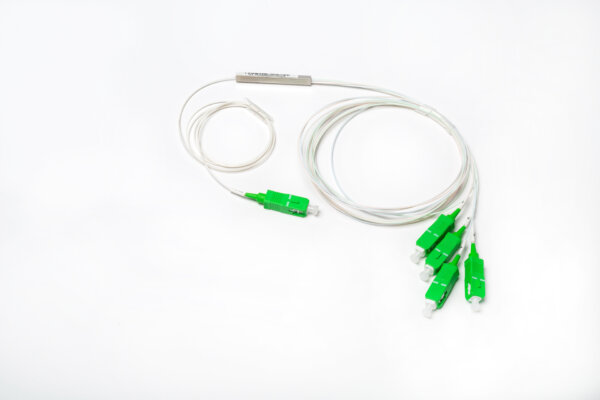

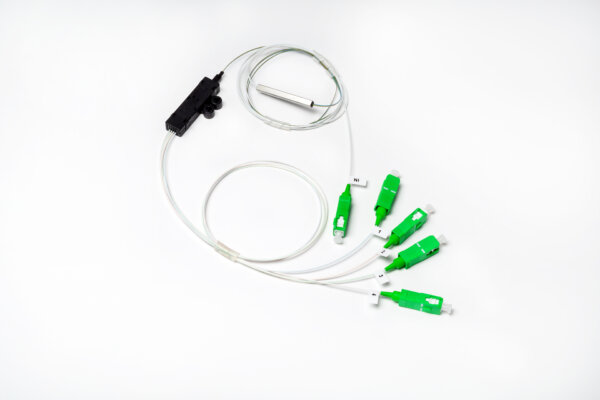

Installed primarily in distributed Outside Plant (OSP) PON | FTTH Networks, small-form PLC optical splitters are designed to mount on splice trays/closures for splicing or direct termination of fiber with connectors. Small-form splitters are available from 1x2 to 1x128 configurations in 250um ribbon, 250um non-ribbon, and 900um industry standard bend insensitive G657A color-code (TIA-598A) fibers. They provide superior optical performance, network reliability/stability, and future support of next generation NG-PON2 technologies. Offered in a wide range of standard and custom configurations for a variety of PON environments. Please Note: Connector options only offered with 900um fiber configurations


  • Excellent environmental & mechanical stability
  • High return loss & port-to-port uniformity
  • Low insertion loss & PDL
  • Premium grade components & connectivity
  • Robust housing
  • Wide operating temperature -40 to +85 °C
  • Wide operating wavelength 1260 ~ 1650nm


Product Specifications

Operating wavelength range (nm) 1260 ~ 1650
Port Configuration 01x12, 01x16, 01x24, 01x32, 01x64, 01x02, 01x04, 01x08, 01x03, 01x06
Insertion Loss - typical (dB) 3.6 (1x2), 6.0 (1x3), 7.0 (1x4), 9.2 (1x6) i 10.3 (1x8) I, 12.2 (1x12), 13.6 (1x16), 15.8 (1x24), 16.6 (1x32), 20.1 (1x64), 24.5 (1x128)
Connector Type Pigtail, LC/APC, LC/UPC, SC/APC, SC/UPC
Uniformity - max. (dB) 0.5 (1x2), 0.6 (1x3), 0.8 (1x4, 1x6, 1x8), 1.20 (1x12), 1.40 (1x16), 1.50 (1x24), 15.0 (1x32) i 2.00 (1x64), 2.6 (1x128)
Fiber Mode Type Singlemode G657A
PDL - max. (dB) 0.2 (1x2), 0.3 (1x3, 1x4, 1x6, 1x8, 1x12, 1x16, 1x24, 1x32), 0.5 (1x64), 0.8 (1x128)
Housing type Small-Form
Return Loss (dB) ≥ 50
Input / Output Fiber Length 0.5 meter, 1 meter, 1.5 meter, 2 meter
Directivity (dB) ≥ 55
Input / Output Fiber Type 250um Individual Non-Ribbon In / Out, 250um In / 250um Ribbon Out, 900um In / Out
Operating/Storage temperature range (°C) -40° to +85°
Maximum power handling (mW) 500
Fiber type Singlemode G657A1 bend insensitive

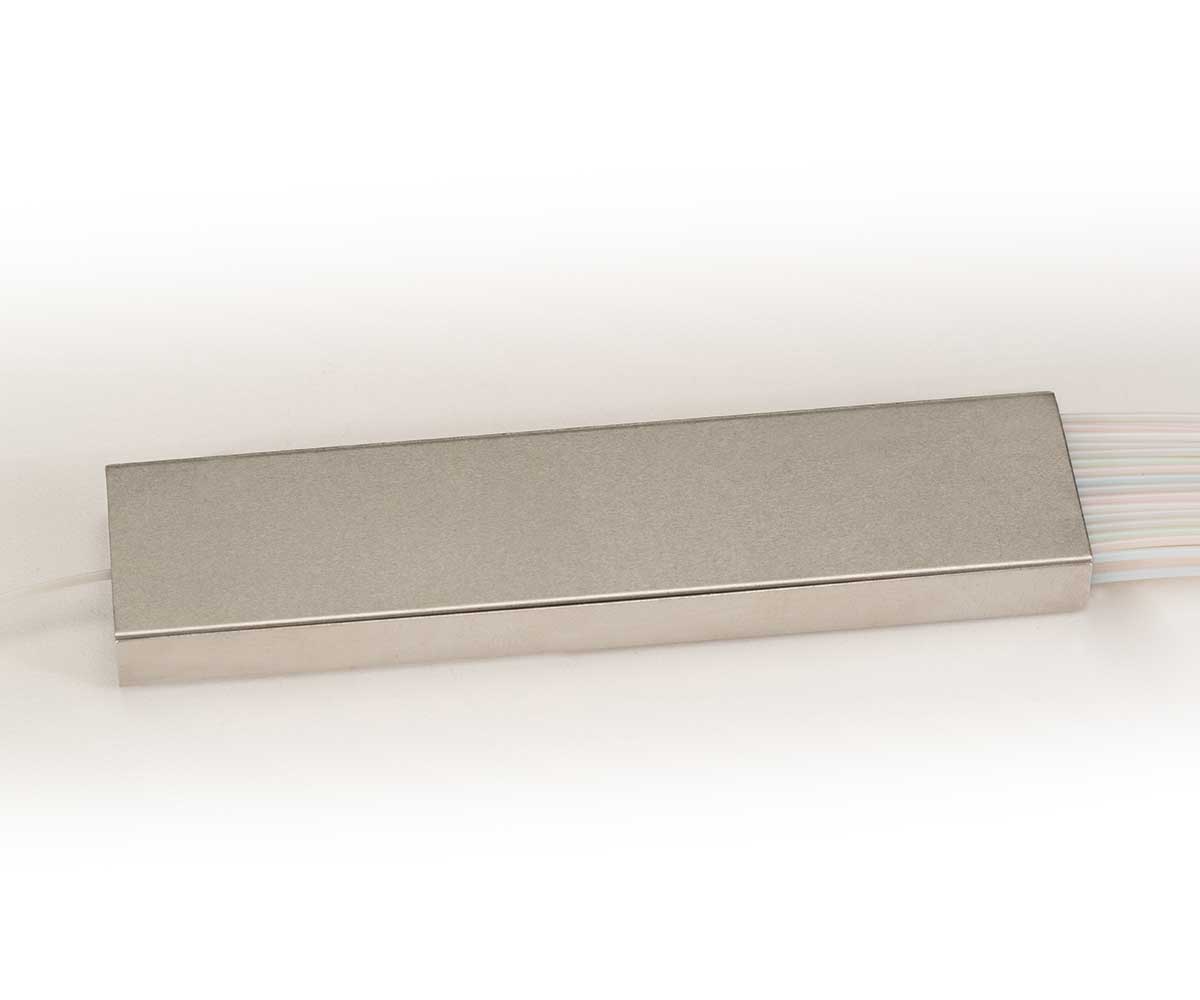

Small-form Housing dimensions with 900um loose-tube over 250um output fiber (mm): 4h x 4.5w x 45l (1x2, 1x3, 1x4), 4h x 7w x 60l (1x6, 1x8), 4h x 12w x 60l (1x12, 1x16), 4h x 12w x 80l (1x24) i 6h x 20w x 80l (1x32), 6h x 20w x 100l (1x64)
