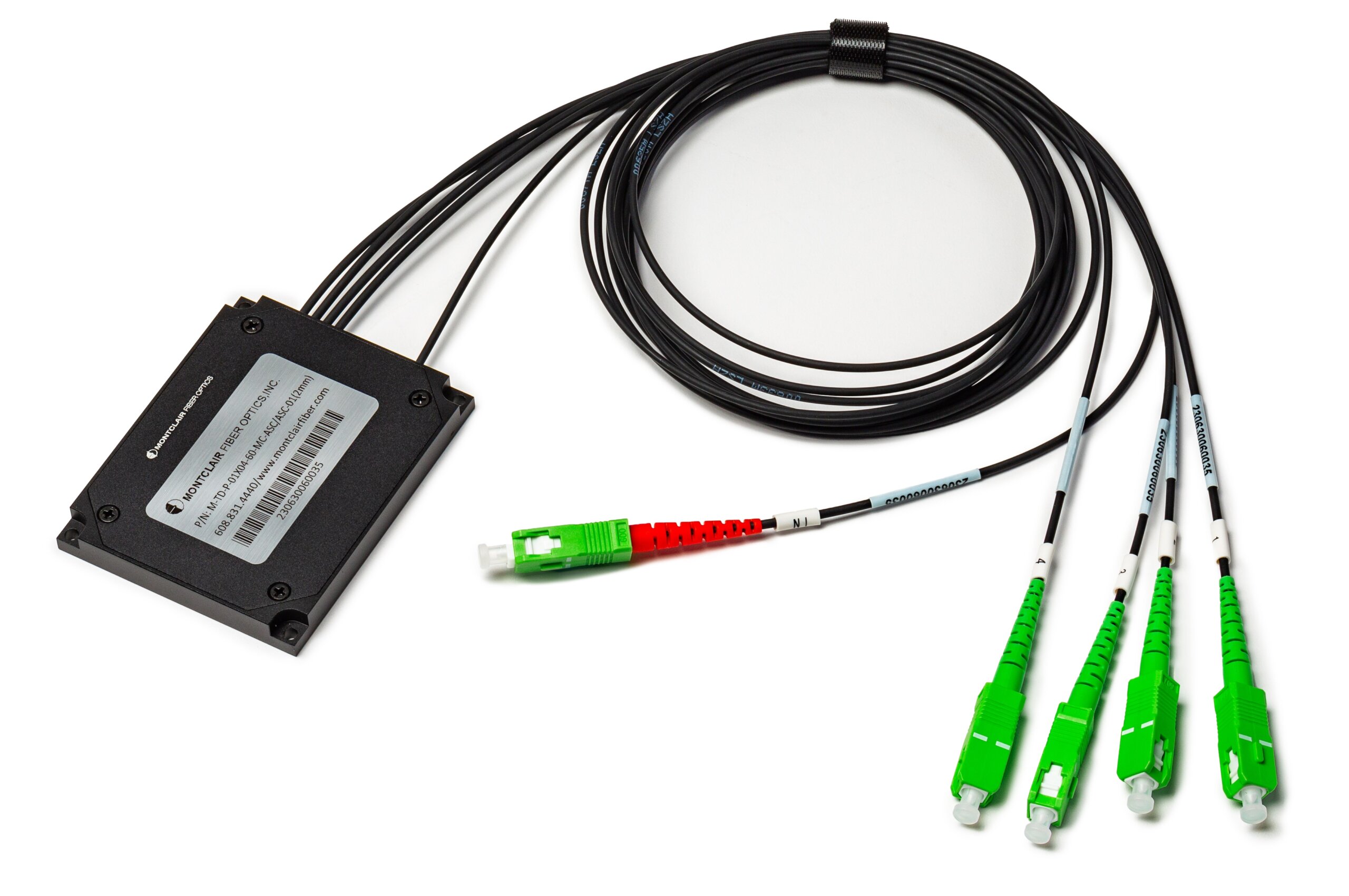

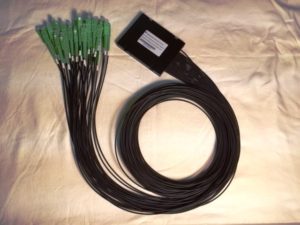

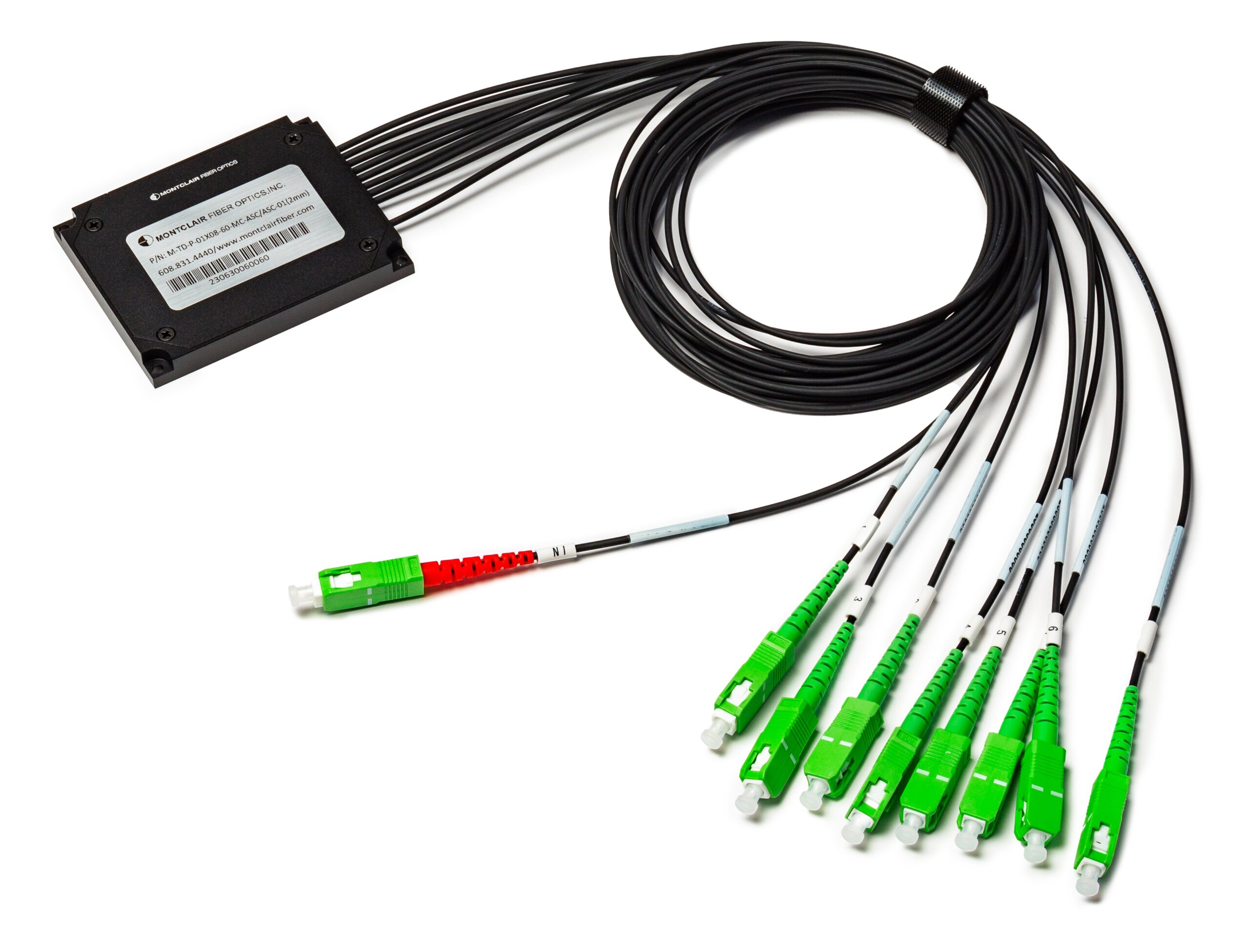

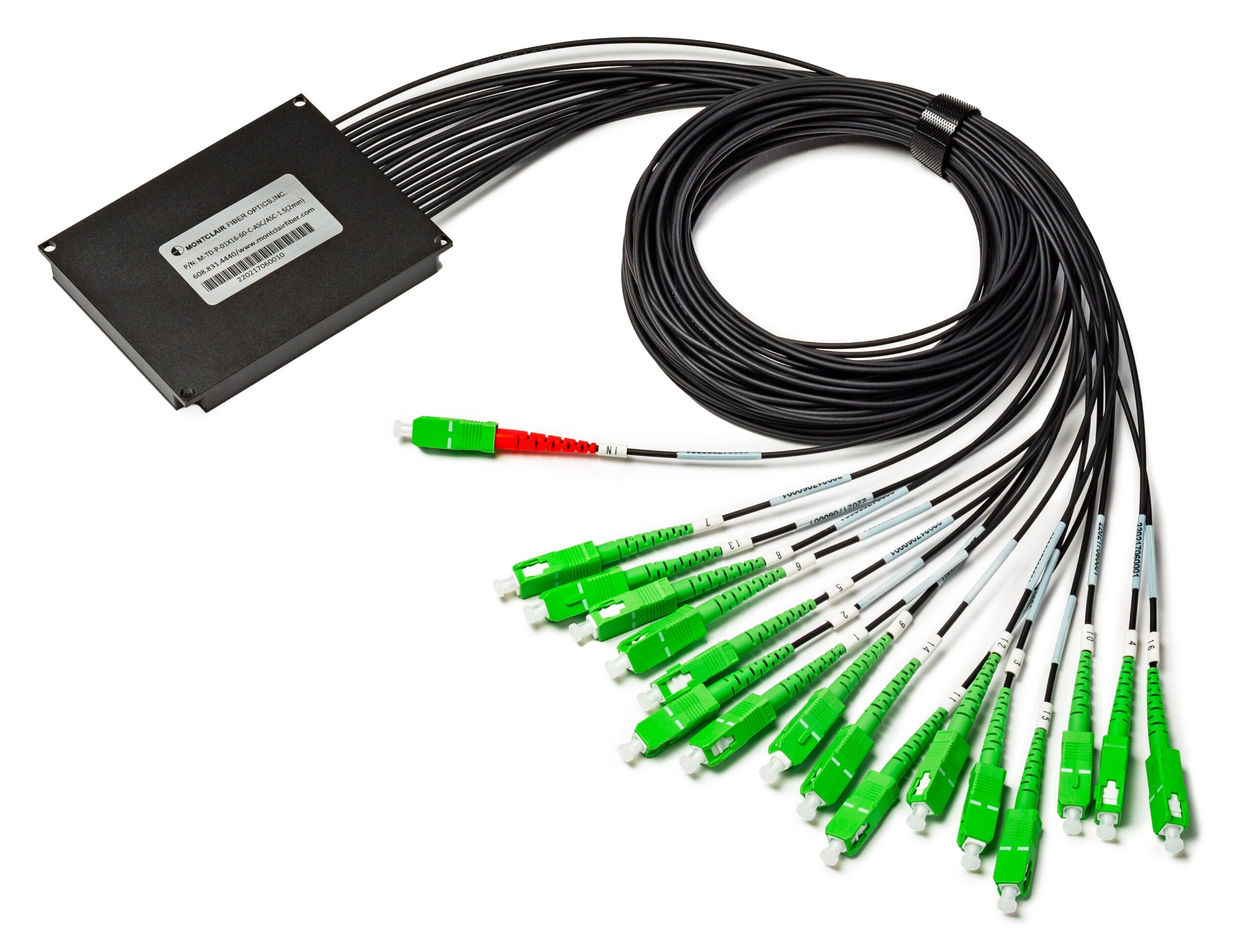

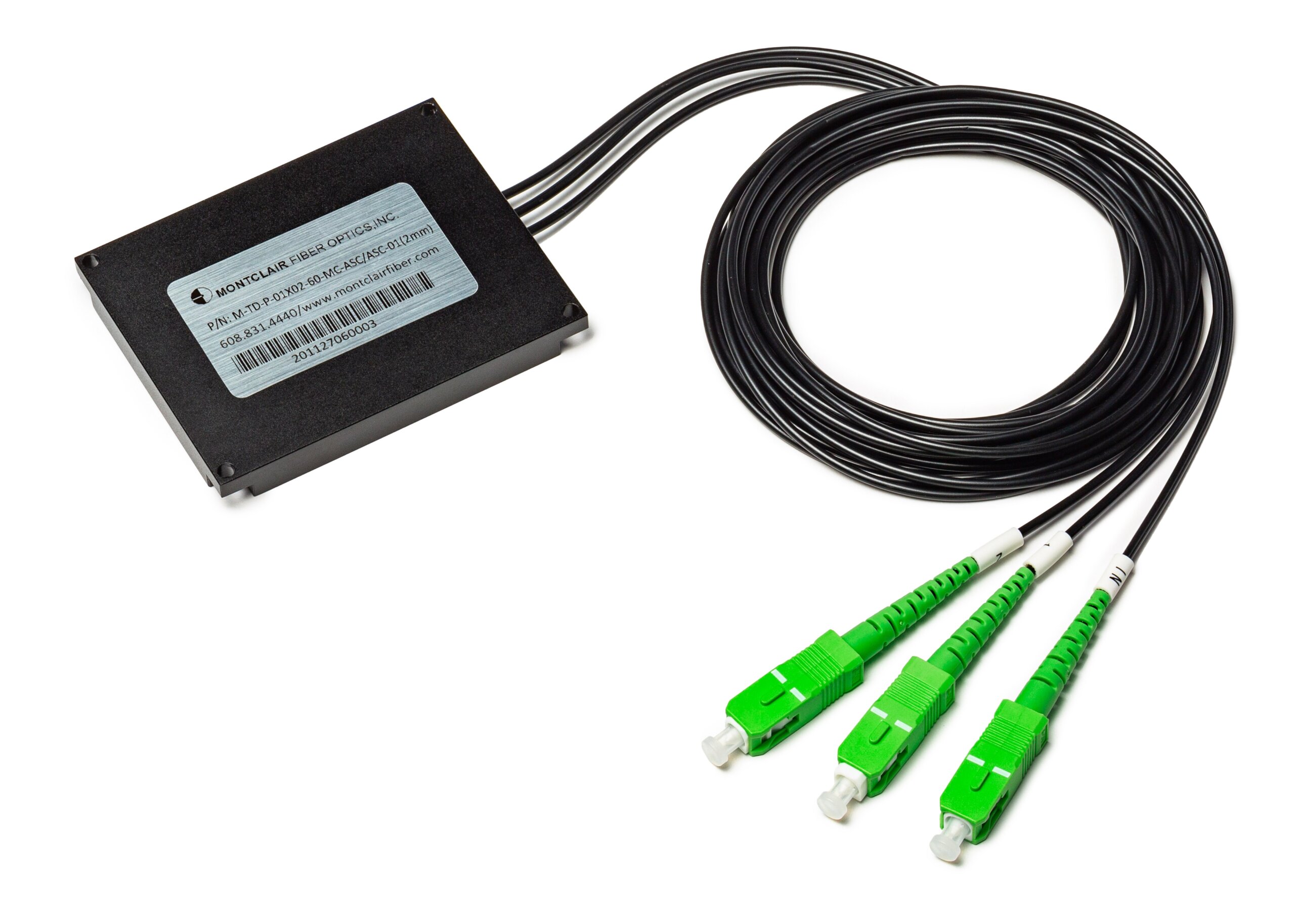

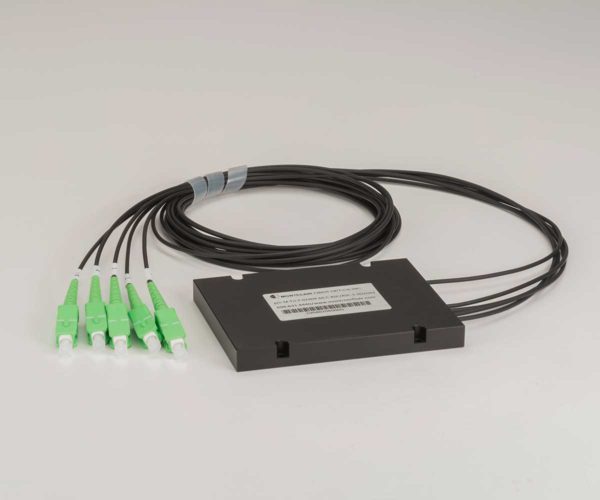

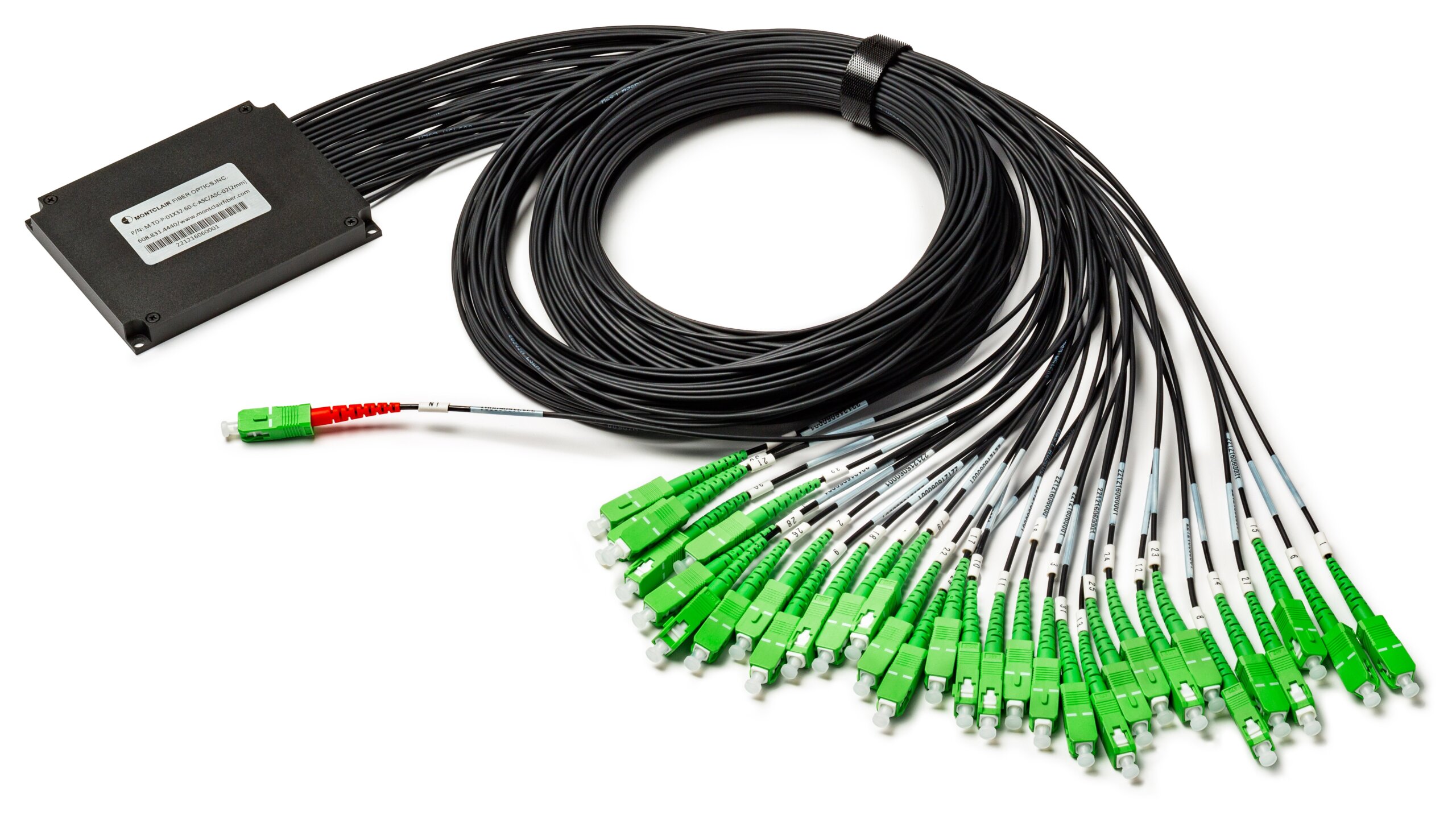

Ruggedized Cassette Optical Splitter

Add Product to Quote

Part No.
For a Custom Design Configuration of this Product Provide Your Request Here

Product Details

Ruggedized cassette PLC optical splitters compact and durable housing are ideal to meet the demands of Outside Plant (OSP) environments. Outdoor-rated fibers are standard with ruggedized cassette splitters to ensure the benefits of the flexible jacketing over extreme temperature ranges. They provide superior optical performance, network reliability/stability, and future support of next generation NG-PON2 technologies. Offered in a wide range of standard and custom configurations for a variety of PON environments.


  • Excellent environmental & mechanical stability
  • High return loss & port-to-port uniformity
  • Low insertion loss & PDL
  • Outdoor-rated fiber cable (Black)
  • Premium grade components & connectivity
  • Robust housing
  • Wide operating temperature -40 to +85 °C
  • Wide operating wavelength 1260 ~ 1650nm


Product Specifications

Operating wavelength range (nm) 1260 ~ 1650
Port Configuration 01x02, 01x03, 01x04, 01x06, 01x08, 01x12, 01x16, 01x24, 01x32, 01x64
Insertion Loss - typical (dB) 3.6 (1x2), 6.0 (1x3), 7.0 (1x4), 9.2 (1x6), 10.3 (1x8), 12.2 (1x12), 13.6 (1x16), 15.8 (1x24), 16.6 (1x32, 20.1 (1x64)
Connector Type Pigtail (no connector), LC/APC, LC/UPC, SC/APC, SC/UPC
Uniformity - max. (dB) 0.5 (1x2), 0.6 (1x3), 0.8 (1x4, 1x6, 1x8), 1.20 (1x12), 1.40 (1x16), 1.50 (1x24, 1x32), 2.00 (1x64)
Fiber cable jacket outer diameter (mm) Ø2.0mm, Ø3.0mm
PDL - max. (dB) 0.2 (1x2), 0.3 (1x3, 1x4, 1x6, 1x8, 1x12, 1x16, 1x24, 1x32), 0.5 (1x64)
In/Out fiber length 0.5 meter, 1 meter, 2 meter
Return Loss (dB) ≥ 50
Directivity (dB) ≥ 55
Operating/Storage temperature range (°C) -40° to +85°
Maximum power handling (mW) 500
Fiber type Singlemode G657A1 bend insensitive
