DWDM 100Ghz Mux Demux Single Fiber
Add Product to Quote
Product Variations
Select a product variation and ‘Save’ to add the product to your quote.
| Part No. | Adapter / Connector type | Number of Channels | Starting wavelength (nm) | Upgrade/Express port | |
|---|---|---|---|---|---|
| MW-D1-4-C21-MD1-R-ALC | LC/APC | 4 | C21 / 1560.61 | No | |
| MW-D1-4-C21-MD1-R-LCU | LC/UPC | 4 | C21 / 1560.61 | No | |
| MW-D1-4-C21-MD1-R-ASC | SC/APC | 4 | C21 / 1560.61 | No | |
| MW-D1-4-C21-MD1-R-SCU | SC/UPC | 4 | C21 / 1560.61 | No | |
| MW-D1-8-C21-MD1-R-ALC | LC/APC | 8 | C21 / 1560.61 | No | |
| MW-D1-8-C21-MD1-R-LCU | LC/UPC | 8 | C21 / 1560.61 | No | |
| MW-D1-8-C21-MD1-R-ASC | SC/APC | 8 | C21 / 1560.61 | No | |
| MW-D1-8-C21-MD1-R-SCU | SC/UPC | 8 | C21 / 1560.61 | No | |
| MW-D1-16-C21-MD1-R-ALC | LC/APC | 16 | C21 / 1560.61 | No | |
| MW-D1-16-C21-MD1-R-LCU | LC/UPC | 16 | C21 / 1560.61 | No | |
| MW-D1-16-C21-MD1-R-ASC | SC/APC | 16 | C21 / 1560.61 | No | |
| MW-D1-16-C21-MD1-R-SCU | SC/UPC | 16 | C21 / 1560.61 | No | |
| MW-D1-4-C21-MD1-R-ALC-U | LC/APC | 4 | C21 / 1560.61 | Yes | |
| MW-D1-4-C21-MD1-R-LCU-U | LC/UPC | 4 | C21 / 1560.61 | Yes | |
| MW-D1-4-C21-MD1-R-ASC-U | SC/APC | 4 | C21 / 1560.61 | Yes | |
| MW-D1-4-C21-MD1-R-SCU-U | SC/UPC | 4 | C21 / 1560.61 | Yes | |
| MW-D1-8-C21-MD1-R-ALC-U | LC/APC | 8 | C21 / 1560.61 | Yes | |
| MW-D1-8-C21-MD1-R-LCU-U | LC/UPC | 8 | C21 / 1560.61 | Yes | |
| MW-D1-8-C21-MD1-R-ASC-U | SC/APC | 8 | C21 / 1560.61 | Yes | |
| MW-D1-8-C21-MD1-R-SCU-U | SC/UPC | 8 | C21 / 1560.61 | Yes | |
| MW-D1-16-C21-MD1-R-ALC-U | LC/APC | 16 | C21 / 1560.61 | Yes | |
| MW-D1-16-C21-MD1-R-LCU-U | LC/UPC | 16 | C21 / 1560.61 | Yes | |
| MW-D1-16-C21-MD1-R-ASC-U | SC/APC | 16 | C21 / 1560.61 | Yes | |
| MW-D1-16-C21-MD1-R-SCU-U | SC/UPC | 16 | C21 / 1560.61 | Yes |
No Results
For a Custom Design Configuration of this Product Provide Your Request Here
Product Details

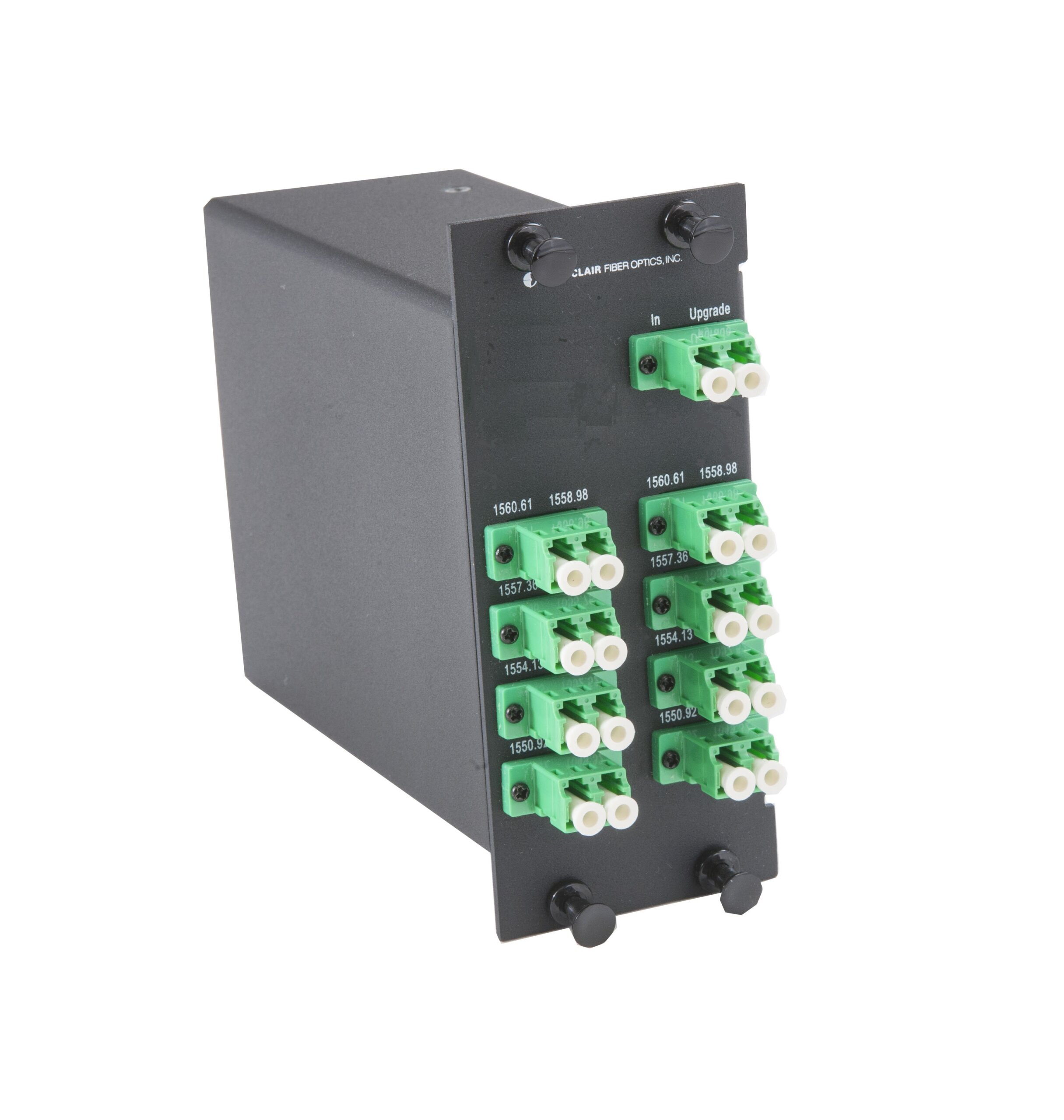

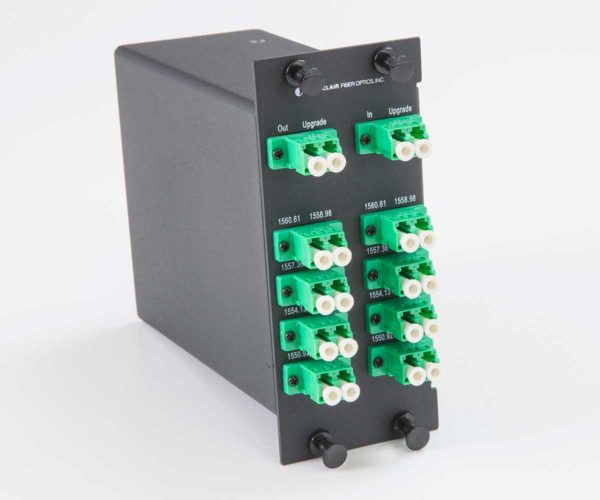

The DWDM Mux Demux single fiber bidirectional solution facilitates the use of DWDM channels in both directions over a single simplex singlemode fiber. The primary distinction between single fiber and dual fiber DWDM is that the single fiber necessitates different wavelengths to be transmitted in each direction. For instance, a 4-channel DWDM single fiber system would require 8 distinct wavelength channels – The East (Mux/Tx) to West (Demux/Rx) direction would employ wavelengths of 1560.61, 1558.98, 1557.36, and 1555.75; conversely, the West (Mux/Tx) to East (Demux/Rx) direction would utilize wavelengths of 1559.79, 1558.17, 1556.56, and 1554.94.
Features
- Excellent environmental & mechanical stability
- High channel isolation
- Premium grade components & connectivity
- Wide pass band
Applications
Standards
Product Documents
Product Specifications
Adapter / Connector type
LC/APC
LC/UPC
SC/APC
SC/UPC
Number of Channels
Up to 40 DWDM channels are available across various channels
Starting wavelength (nm)
DWDM ITU Grid; C-Band; 100GHz Spacing
Upgrade/Express port
No, Yes
