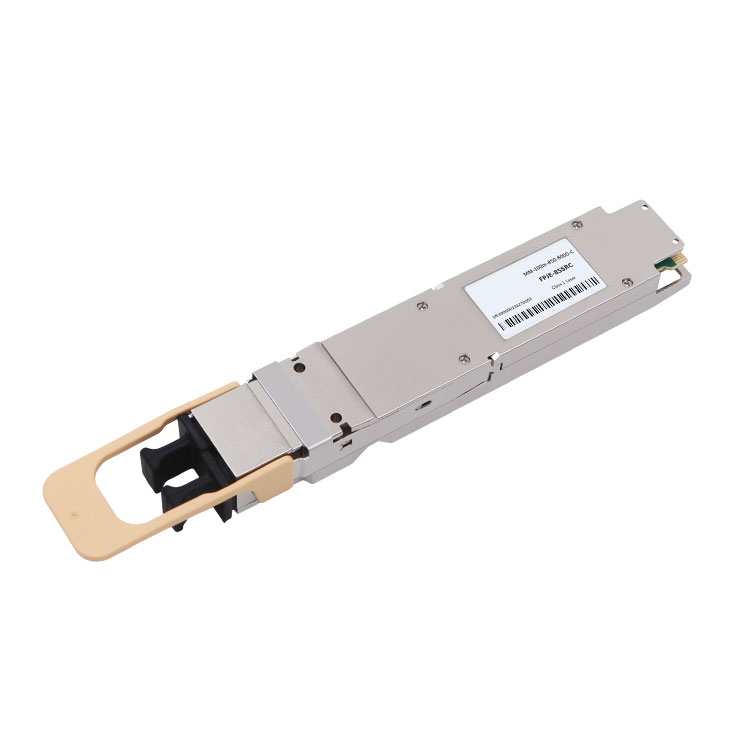

800G OSFP 850nm Optical Transceiver

The eight-channel, parallel, pluggable, fiber-optic OSFP transceiver is designed for 800 Gigabit Ethernet applications. It is a high-performance module for short-range data communication and interconnect use. The transceiver integrates eight data lanes in each direction, with each lane operating at 53.125 Gbps. It can transmit data up to 60 meters over OM3 multimode fiber or up to 100 meters over OM4 multimode fiber, using a nominal wavelength of 850nm. Features 8x100G PAM4 retimed 800GAUI-8 electrical interface Dual MPO-12 APC connector and MPO16 APC connector are provided 8 channel VCSEL arrays and 8 channels PIN photo detector arrays Maximum link length of 60m on OM3 or 100m on OM4 Hot Pluggable OSFP form factor Compliant to OSFP Module Specification Rev 5.0 Compliant with CMIS 5.2 Compliant with IEEE 802.3db Compliant to IEEE 802.3ck Less than 14W in temperature range of 0 to 70℃ Applications 800G Ethernet Infiniband Interconnects Data Center Interconnects NV Link Interconnects AI
