1650 OTDR WDM Pluggable Reflector
Add Product to Quote
Product Variations
Select a product variation and ‘Save’ to add the product to your quote.
| Part No. | Adapter Type | |
|---|---|---|
| MFT-WBF-P-1650-ALC | LC/APC | |
| MFT-WBF-P-1650-LCU | LC/UPC | |
| MFT-WBF-P-1650-ASC | SC/APC | |
| MFT-WBF-P-1650-SCU | SC/UPC |
No Results
For a Custom Design Configuration of this Product Provide Your Request Here
Product Details

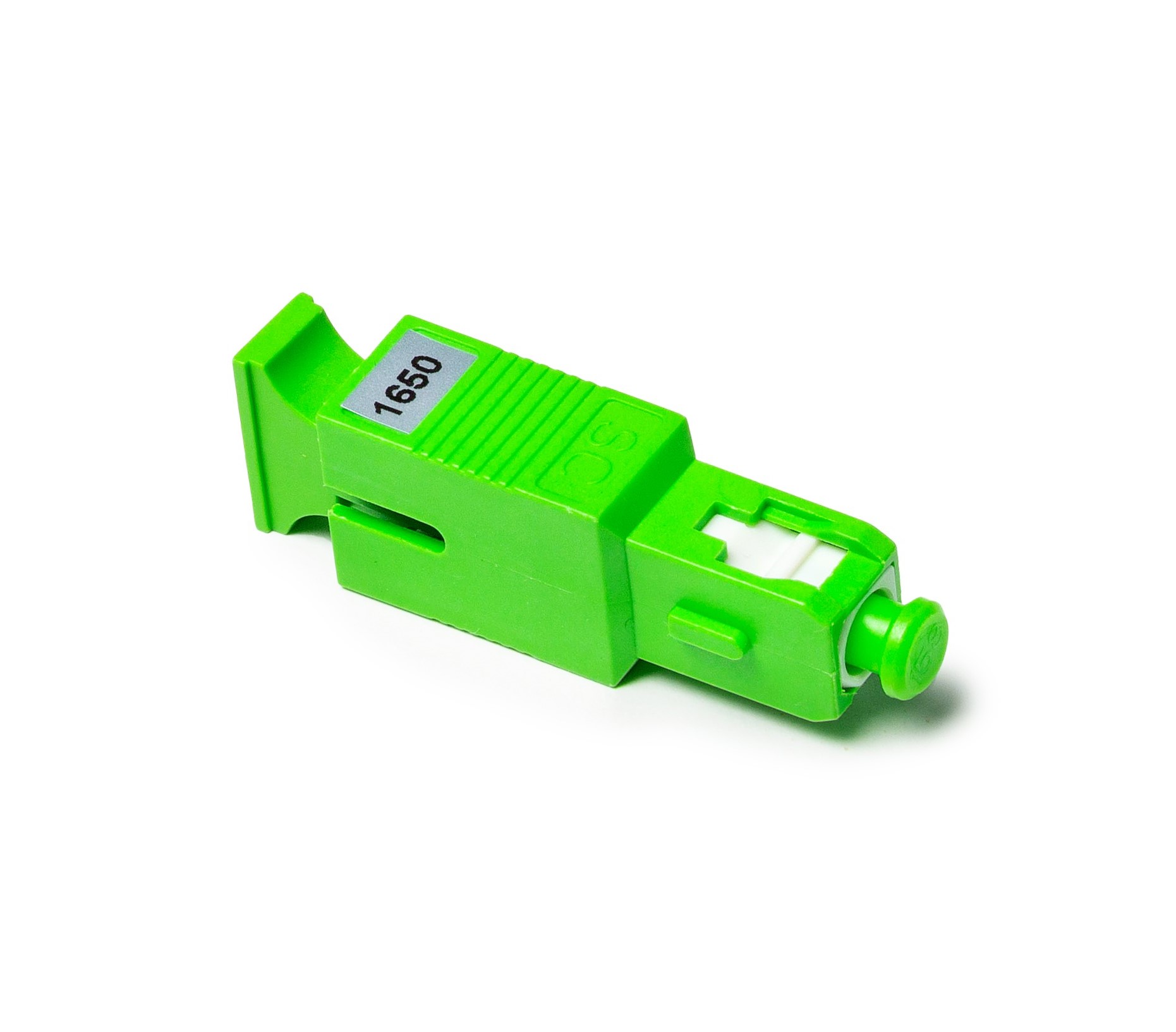

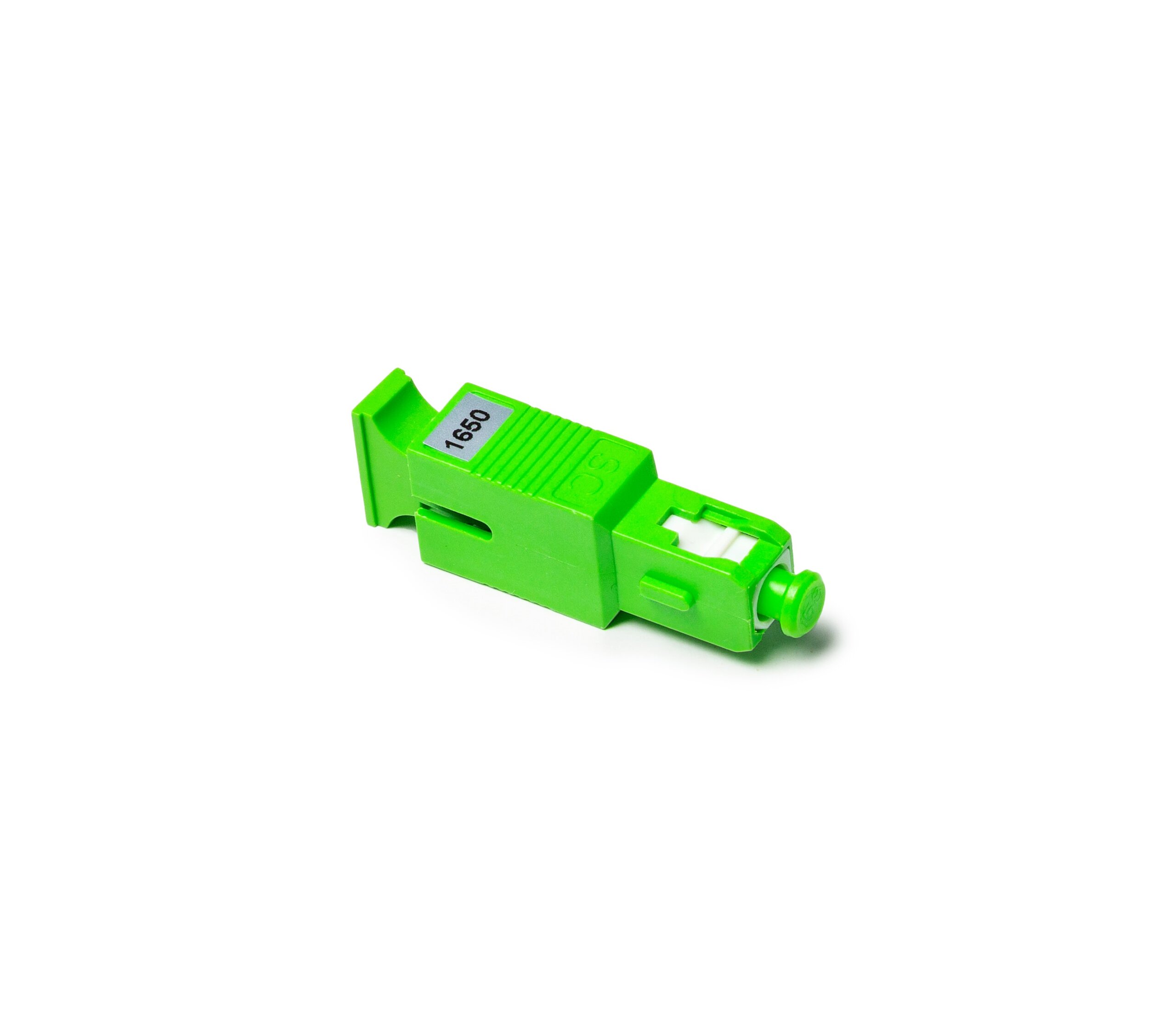

The 1650 OTDR WDM Pluggable Reflector is an optical component used in the FTTH access network for filtering out the 1650 (1645 – 1655nm) wavelength and allowing the other wavelengths to pass through.
Low-profile compact design can be easily installed on the ONT side of FTTH optical networks.
Features
• Greater than 99.5% return ratio
• Based on Fiber Bragg Grating Filter Technology
• Pluggable design for easy installation
• Excellent environmental & mechanical stability
• RoHS compliant
Product Documents
Product Specifications
Adapter Type
LC/APC, LC/UPC, SC/APC, SC/UPC
Housing type
Pluggable Male to Female
Operating wavelength (nm)
1650
